PermaLean ®

LEAN

  • Durable, lean marking tape
  • Tough, upper laminate
  • Printed, colour base layer
  • 0.022″/570mu thick
  • Rolls & die-cut widths up to 49″
  • Free samples (takes you to permastripe®.us)
  • 1-year guarantee

5s Optimised Floor Marking

1 Year Guarantee

High Quality Line Marking

Durable Floor Marking

PermaLean® is our most durable and lean floor tape yet! At a total thickness of 0.022″/570mu, PermaLean® is the leanest self-adhesive, industrial-grade floor tape in the world. With PermaStripe® being 0.05″/1300mu and PermaRoute® 0.038″/960mu. PermaLean® allows us to offer a cost-effective range of durable, lean floor tapes that will provide better options for a wider audience to choose from to suit their requirements and budget. The product is designed to be extremely tough and allowing great margins for resellers.

Why PermaLean®?

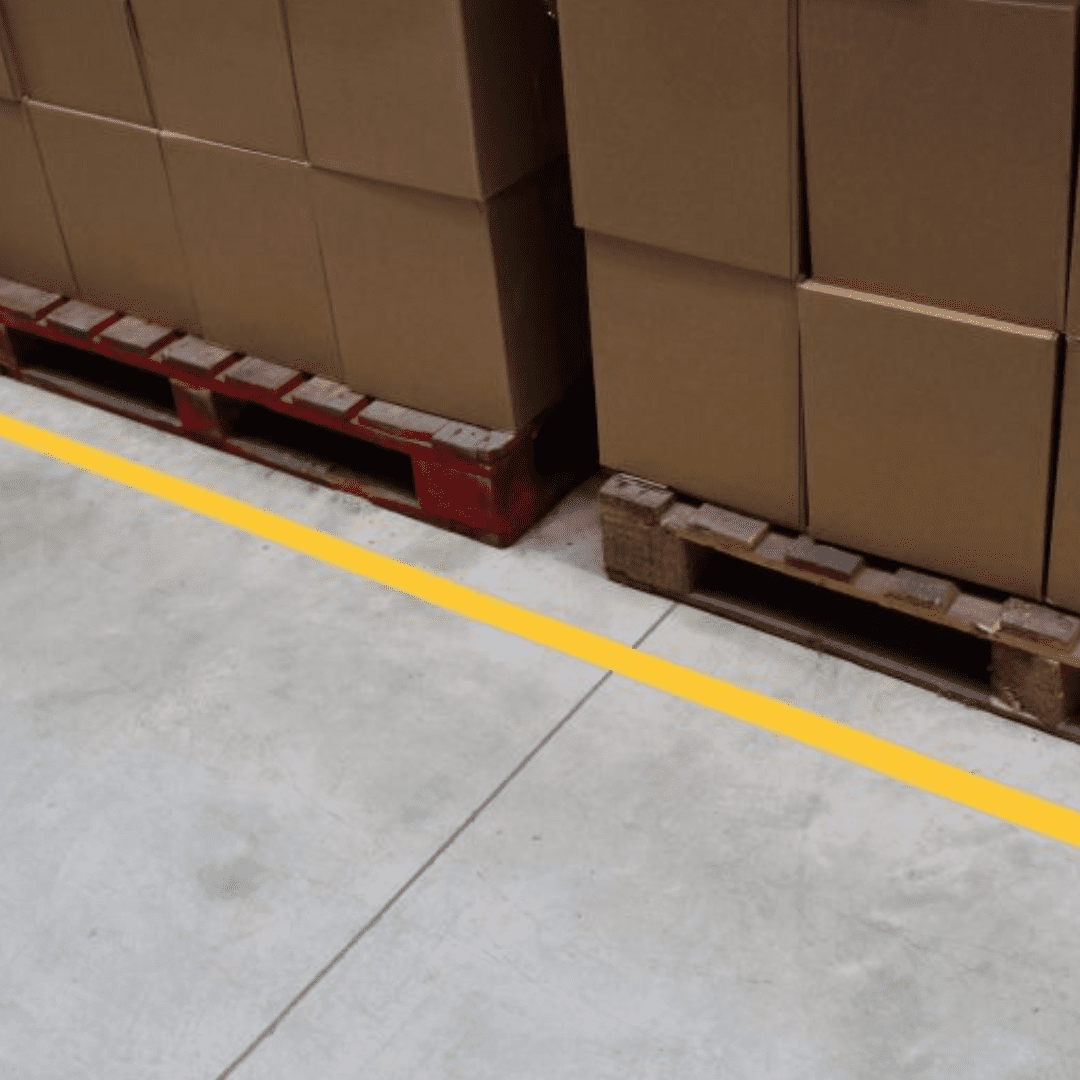

You can create a cost-effective, lean floor marking system within your workplace to provide guidance in the form of lines, shapes, letters and numbers in various colors to suit your workplace needs and 5S requirements.

For plain colors, PermaLean® is produced from a solid homogenous piece of colored plastic film that is 500mu thick. For hazard chevron colors (black/yellow and red/white) we print onto a 250mu base film then laminate a tough clear 250mu upper film to ensure that the pattern can never be scratched off, making it the most durable hazard print possible.

PermaLean® Sizes & Shapes

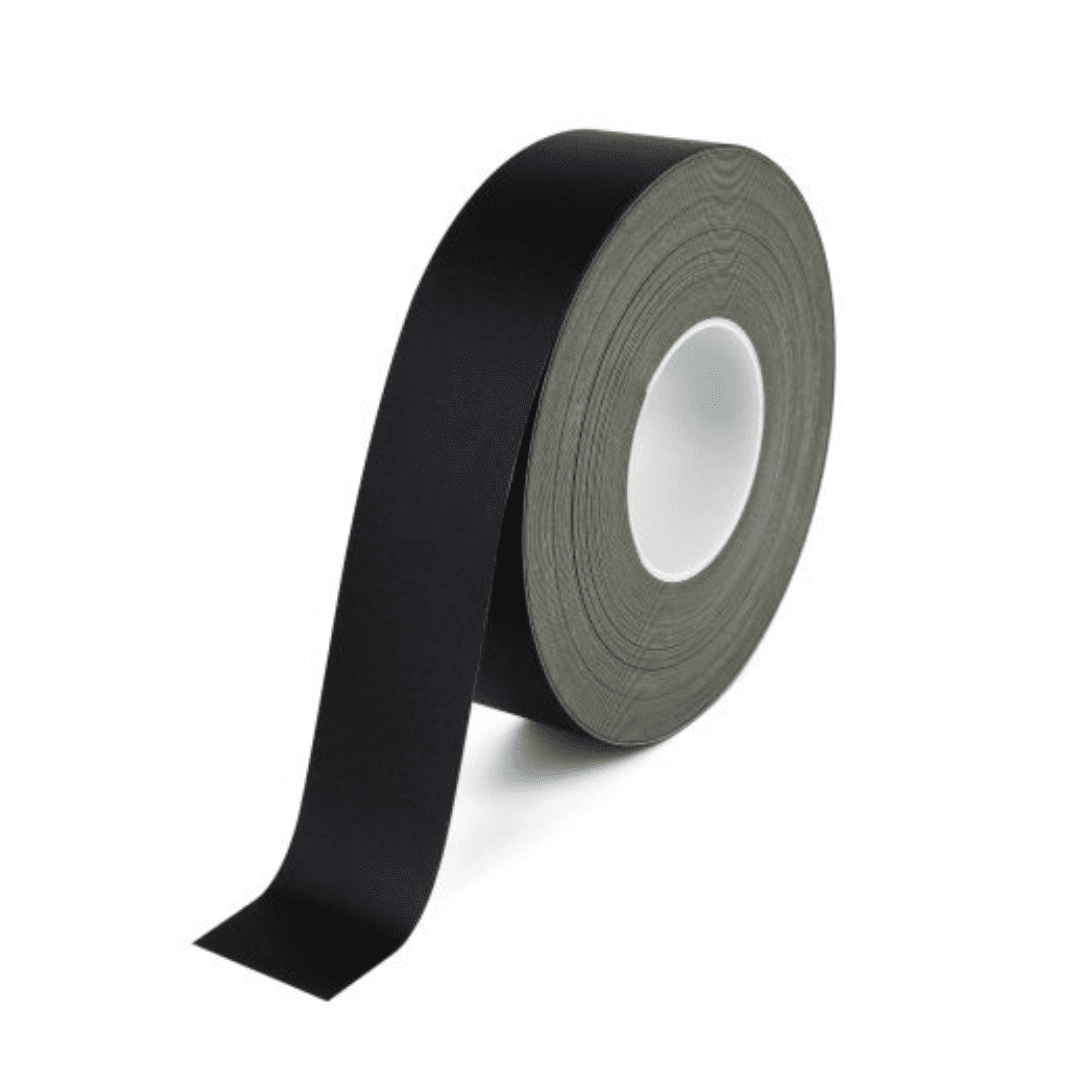

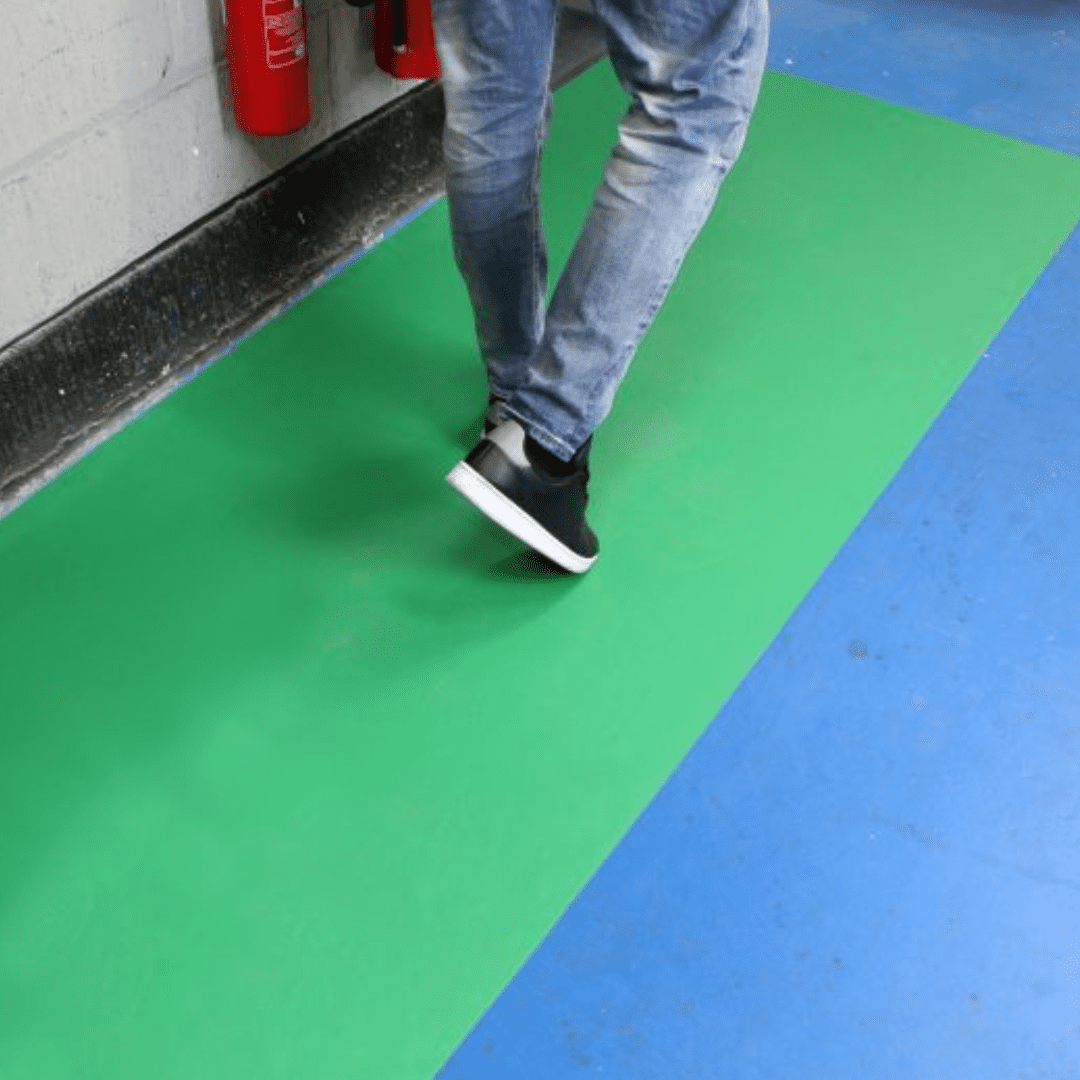

As PermaLean® is produced in 49” master rolls, these can then be cut down into rolls anywhere from 1” to the maximum 49”. Die-cuts can also be produced in any size up to the master roll width. View our range of available die-cut designs here.

Our stock range of PermaLean® die-cut designs can be produce very quickly, but any custom shapes will be considered (minimum order quantities and additional tooling costs are required).

PermaLean® 1-Year Warranty

The Heskins® warranty for PermaLean® is conditionally warranted for 1 year from product purchase. Warranty claims are only limited to the replacement of PermaLean®. The warranty does not cover items being dragged, pushed or scraped across such as pallets or transit skids.

You can request samples by completing the PermaLean® sample request form. (takes you to permastripe®.us)

To place an order you can contact our sales team via live chat or phone. Alternatively, complete the Make an Enquiry form and a member of our sales team will get back to you as soon as possible.

VIDEOS

REMOVE DAMAGED AREA WITH A SCALPEL

MEASURE TAPE TO LENGTH

CUT TAPE TO LENGTH

CLEAN SURFACE WITH H3508 IPA SURFACE CLEANER

PEEL OFF ADHESIVE FILM

ALIGN TAPE IN PLACE

APPLY TAPE USING ROLLER

APPLY H3502 EDGE FIX

DESIGN

Please click on the images to view the Dimensions.

SHAPES (CLICK IMAGES TO VIEW DIMENSIONS)

L

ZN0027 – 7″ x 7″

T

ZN0028 – 11″ x 7″

X

ZN0029 – 11″ x 11″

DOT

ZN0035 – 2″

DOT

ZN0034 – 3.5″

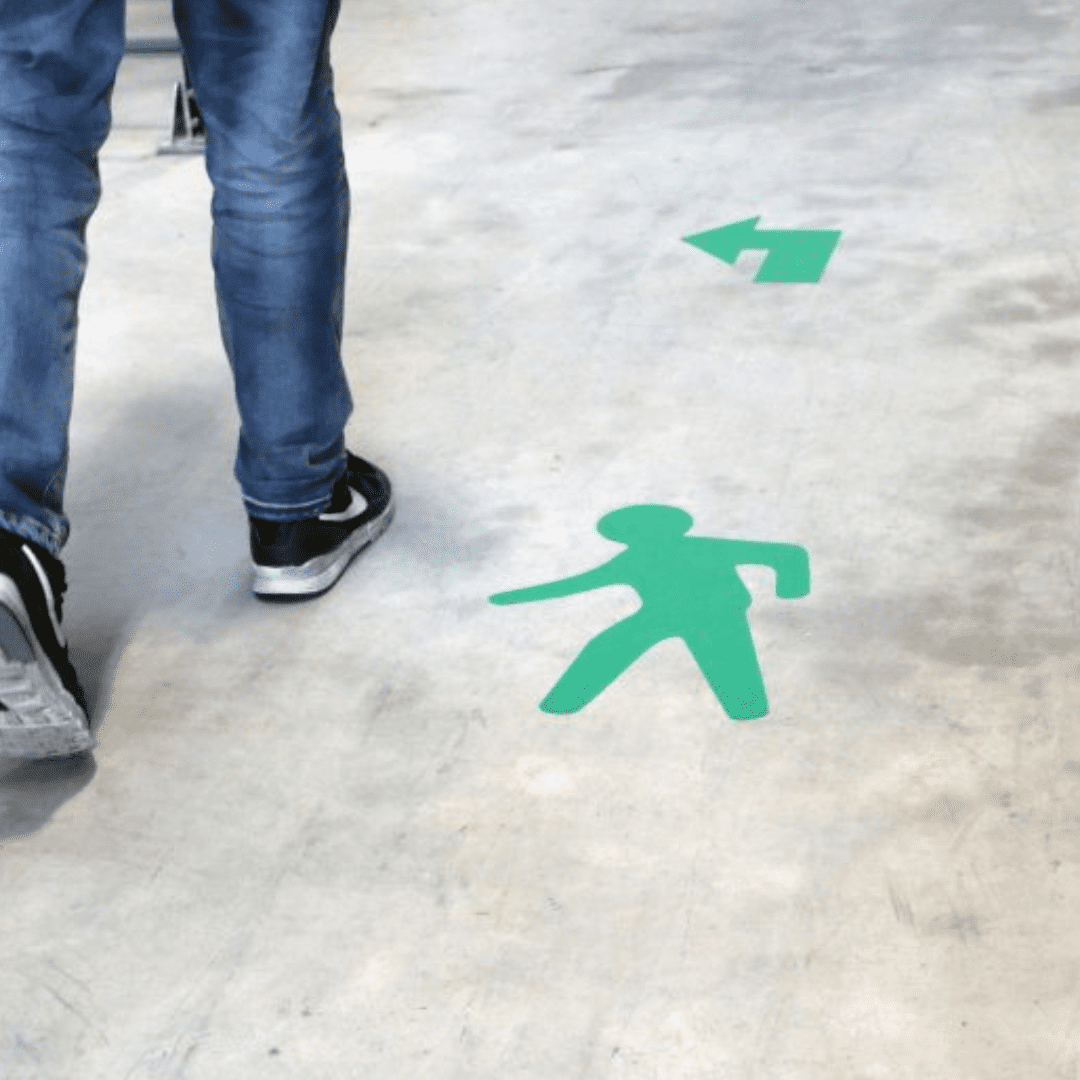

WALKING FIGURE

ZN0051 – 13″ x 19.6″

FORKLIFT

ZN0038 – 21″ x 19″

SHORT ARROW

ZN0050 – 3.5″ X 3″

TICK

ZN0004 – 200mm x 200mm

CROSS

ZN0005 – 200mm x 200mm

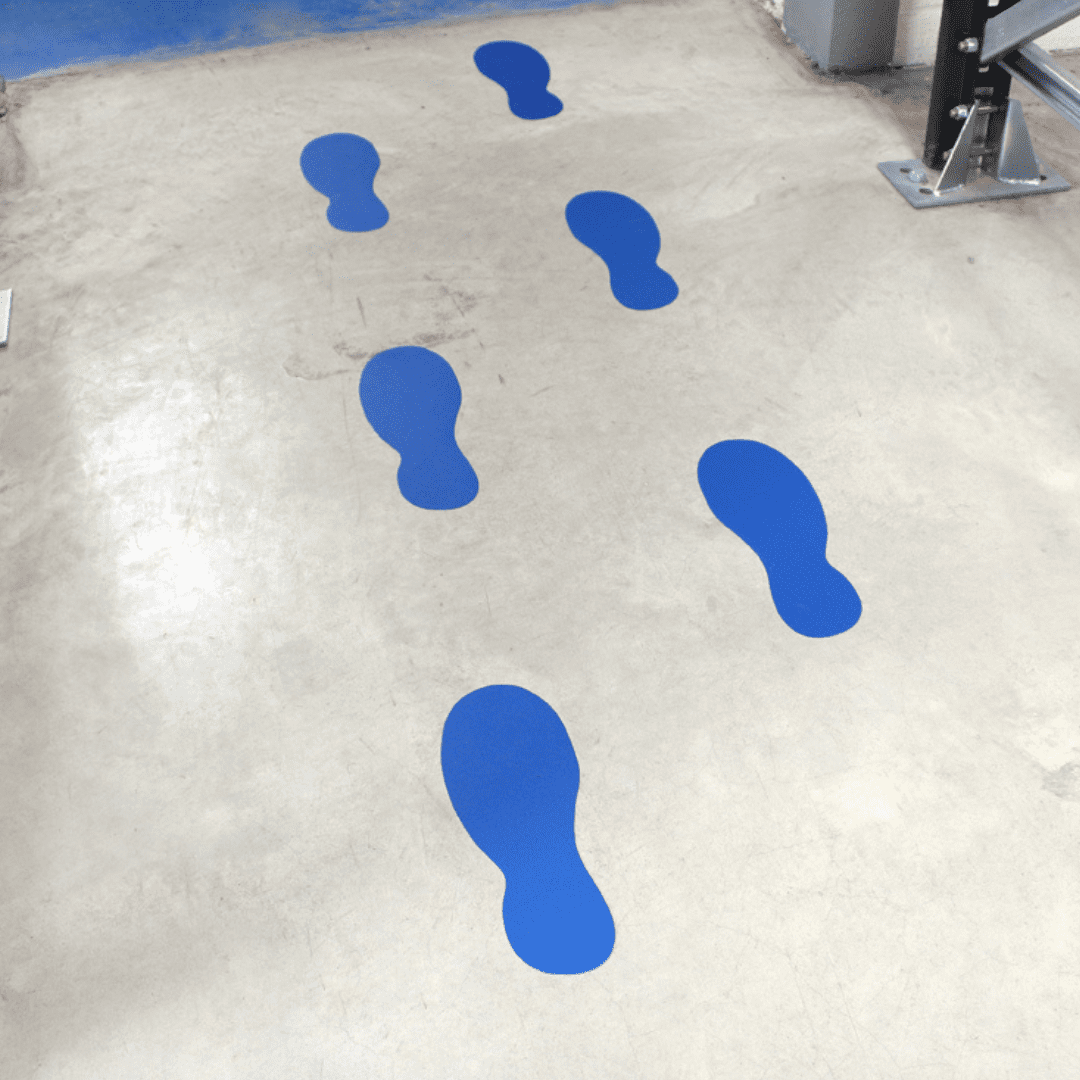

FEET (CLICK IMAGES TO VIEW DIMENSIONS)

FEET

ZN0201 – 4.15″ x 11″

FEET

ZN0010 – 2.5″ x 4″

FEET

ZN0011 – 4.7″ x 8.2″

SHOE

ZN0013 – 9.4″ x 3.2″

BOOTS

ZN0016 – 4.7″ x 11.8″

JOINS (CLICK IMAGES TO VIEW DIMENSIONS)

90° CORNER

ZN0063 – 3.5″ x 3.5″

90° CORNER

ZN0054 – 5″ x 5″

90° CORNER

ZN0202 – 7″ x 7″

45° CORNER

ZN0214 – 3.3″ x 2.7″

45° CORNER

ZN0215 – 5″ x 4.5″

45° CORNER

ZN0216 – 6.7″ x 5.5″

T-JUNCTION

ZN055 – 5.75″ x 3.93″

T-JUNCTION

ZN0217 – 8.6″ x 5.9″

T-JUNCTION

ZN0339 – 11.4″ x 7.87″

BRIDGE

ZN0061 – 5.5″ x 2.75″

BRIDGE

ZN0062 – 8.2″ x 4.13″

BRIDGE

ZN0340 – 11″ x 5.5″

END CAP

ZN0157 – 2.75″ x 1.37″

END CAP

ZN0341 – 4.13″ x 2″

END CAP

ZN0342 – 5.5″ x 2.75″

NUMBERS (CLICK IMAGES TO VIEW DIMENSIONS)

ZERO

ZN0083– 3.5″

ZN0093– 7″

1

ZN0084– 3.5″

ZN0094– 7″

2

ZN0085– 3.5″

ZN0095– 7″

3

ZN0083– 3.5″

ZN0096– 7″

4

ZN0087– 3.5″

ZN0097– 7″

5

ZN0088– 3.5″

ZN0098– 7″

6

ZN0089– 3.5″

ZN0099– 7″

7

ZN0090– 3.5″

ZN0100– 7″

8

ZN0091– 3.5″

ZN0101– 7″

9

ZN0092– 3.5″

ZN0102– 7″

LETTERS (CLICK IMAGES TO VIEW DIMENSIONS)

A

ZN0229– 3.5″

ZN0255– 7″

B

ZN0230– 3.5″

ZN0230– 7″

C

ZN0231– 3.5″

ZN0257– 7″

D

ZN0232– 3.5″

ZN0258– 7″

E

ZN0233– 3.5″

ZN0259– 7″

F

ZN0234– 3.5″

ZN0260– 7″

G

ZN0235– 3.5″

ZN0261 – 7″

H

ZN0236– 3.5″

ZN0262– 7″

I

ZN0237– 3.5″

ZN0263– 7″

J

ZN0238– 3.5″

ZN0264– 7″

K

ZN0239– 3.5″

ZN0265– 7″

L

ZN0240– 3.5″

ZN0266– 7″

M

ZN0241– 3.5″

ZN0267– 7″

N

ZN0242– 3.5″

ZN0268– 7″

O

ZN0243– 3.5″

ZN0269– 7″

P

ZN0244– 3.5″

ZN0270– 7″

Q

ZN0245 – 3.5″

ZN0271– 7″

R

ZN0246– 3.5″

ZN0272– 7″

S

ZN0247– 3.5″

ZN0273– 7″

T

ZN0248– 3.5″

ZN0274– 7″

U

ZN0249– 3.5″

ZN0275– 7″

V

ZN0250– 3.5″

ZN0276– 7″

W

ZN0251– 3.5″

ZN0277– 7″

X

ZN0252– 3.5″

ZN0278– 7″

Y

ZN0253– 3.5″

ZN0279– 7″

Z

ZN0254– 3.5″

ZN0280– 7″

LEAN_N

Pantone / RAL
Black 6 U / 9004

Average LRV
3.13

Black

LEAN_R

Pantone / RAL
484 U / 3001

Average LRV
15.38

Red

LEAN_O

Pantone / RAL
1665 U / 2010

Average LRV
23.07

Orange

LEAN_Y

Pantone / RAL
137 U / 1003

Average LRV
52.33

Yellow

LEAN_V

Pantone / RAL
3288 U / 6032

Average LRV
14.93

Green

LEAN_B

Pantone / RAL
294 U / 5005

Average LRV
6.63

Blue

LEAN_W

Pantone / RAL
705 U / 9003

Average LRV
78.14

White

LEAN_W

Pantone / RAL
Black: Black 6 / 9004
Yellow: 137 U / 1003

Average LRV
Black: 3.18
Yellow: 62.88

Yellow/Black Hazard

LEAN_E

Pantone / RAL
Black: Black 6 U / 9004
White: 7541 U / 9003

Average LRV
Black: 2.83
White: 80.38

Black/White Hazard

LEAN_A

Pantone / RAL
Red: 32 U / 3028
White: White / 9003

Average LRV
Red: 25.82
White: 78.55

Red/White Hazard

DOWNLOADS

LIGHT REFLECTANCE VALUES

PRODUCT CODE COLOR AV. LRV RANGE
LEAN_N Black 3.13 0.78
LEAN_R Red 15.38 0.47
LEAN_O Orange 23.07 0.25
LEAN_Y Yellow 52.33 0.96
LEAN_G Green 14.93 0.78
LEAN_B Blue 6.63 0.4
LEAN_W White 78.14 0.78
LEAN_Z Black / Yellow Hazard 3.18 / 62.88 0.75 / 2.08
LEAN_A Red / White Hazard 25.82 / 78.55 1.14 / 1. Save 93
