PermaStripe®

PERM

  • Homogenous
  • Chamfered edge
  • Easy to apply
  • 0.05″ thick
  • Widths from 2″ to 4″ (bar Glow in the Dark)
  • Free samples (takes you to permastripe®.us)
  • 3 Year Guarantee
5S Optimisation

5S Optimised Floor Marking

3 Year Guarantee

High Quality Line Marking

Durable Floor Marking

Floor marking tape does not come any tougher than PermaStripe®. PermaStripe® is the world’s toughest floor marking tape, it is unique, and it has a construction that cannot be compared to anything else. PermaStripe is the material designed to meet modern 5S requirements.

Benefits

Unlike a line marking paint or a line marking resin no fumes are created and there is no curing time ensuring that PermaStripe® is perfect for use in laboratories, pharmaceutical production sites, food preparation areas etc. As PermaStripe® is solid it does not need to dry, it can be walked on immediately after application. If a company wants to ensure that there is no production downtime then PermaStripe® is the material of choice, all production can continue whilst the aisle marking is applied and can be used immediately afterwards.

Sizes & Colors

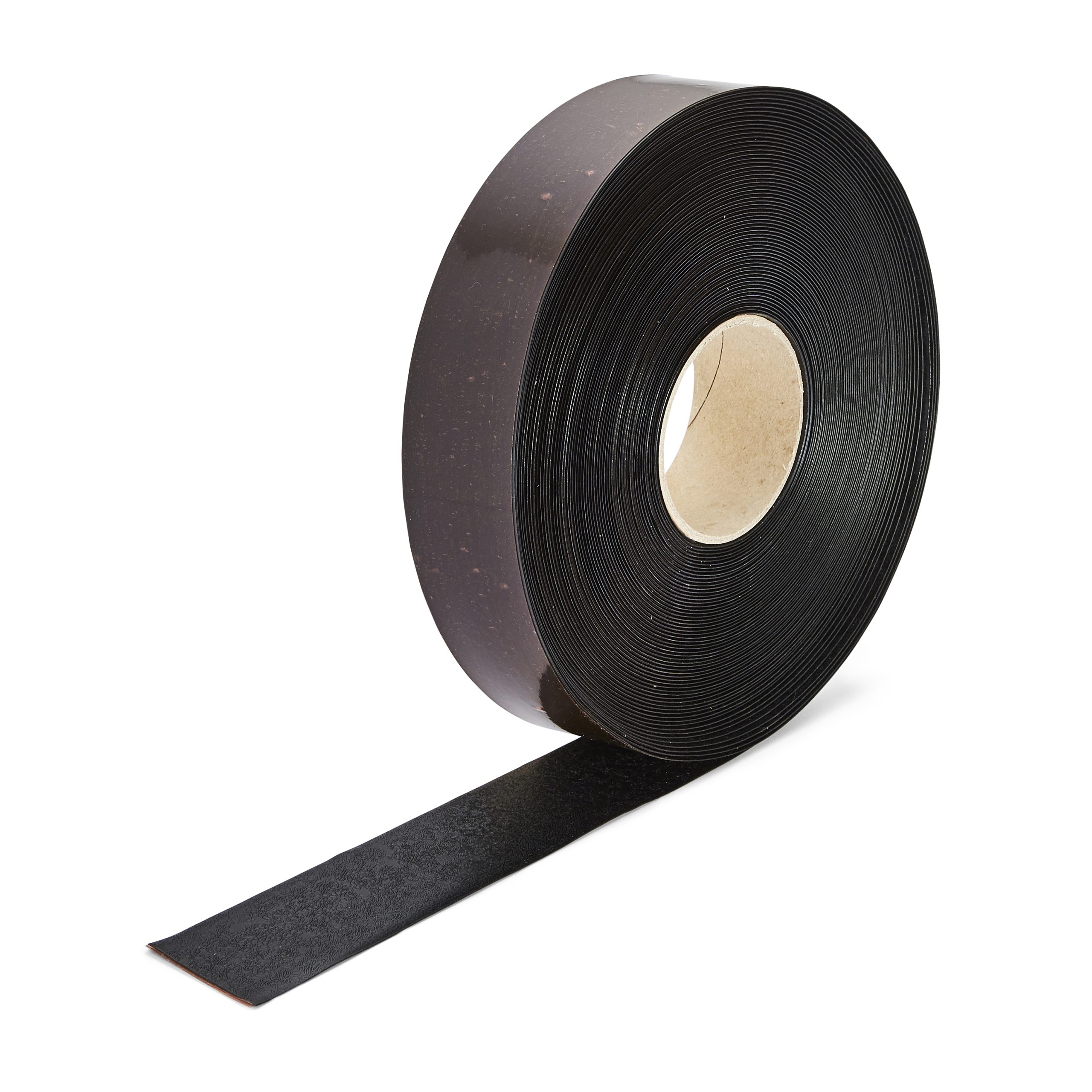

Our heavy-duty floor marking tape is produced in 13 industry required colors; black, glow in the dark, yellow, yellow/black, green, red, white, red/white, blue, black/white, orange and fluorescent yellow. Three roll sizes are available 2”x98’, 3”x98’ and 4”x98’.

Material

The construction is a solid homogenous piece of flexible plastic 0.05” thick. Unlike normal floor marking tape the color is not a print, the color is an integral part of the product, and it cannot be removed by solvents or even scraped away, even if someone scrapes it the color remains. PermaStripe® is so incredibly thick the edge has to be chamfered to prevent it from becoming a trip hazard. Each roll has is produced individually, not slit, we apply the adhesive using a special laminator, the adhesive is coated completely edge to edge, if an adhesive material is going to fail then it will fail on the edges, no one manages to lift up the middle without edge failure first. PermaStripe® uniquely has an edge to edge adhesive.

Even though PermaStripe® is so tough it can even be removed, its extreme strength ensures that it will not snap or fracture, resulting in the unique ability to change the color of individual areas, a green recycling area can be changed to become a red reject site, all with ease, imagine trying to do that with a line marking paint or a line marking resin!

PermaStripe® marking tape conforms to OSHA regulations and standards, OSHA stipulates that a business must follow this set of rules:

  • All places of employment shall be kept clean and in an orderly fashion, all passageways should be kept clear from obstruction
  • Where mechanical handling equipment such as forklifts are in use, sufficient safe clearances shall be made for aisles, loading bays, doorways and turning zones and ways of passage.
  • Permanent aisles and passageways for machinery and personnel shall be marked as appropriate.

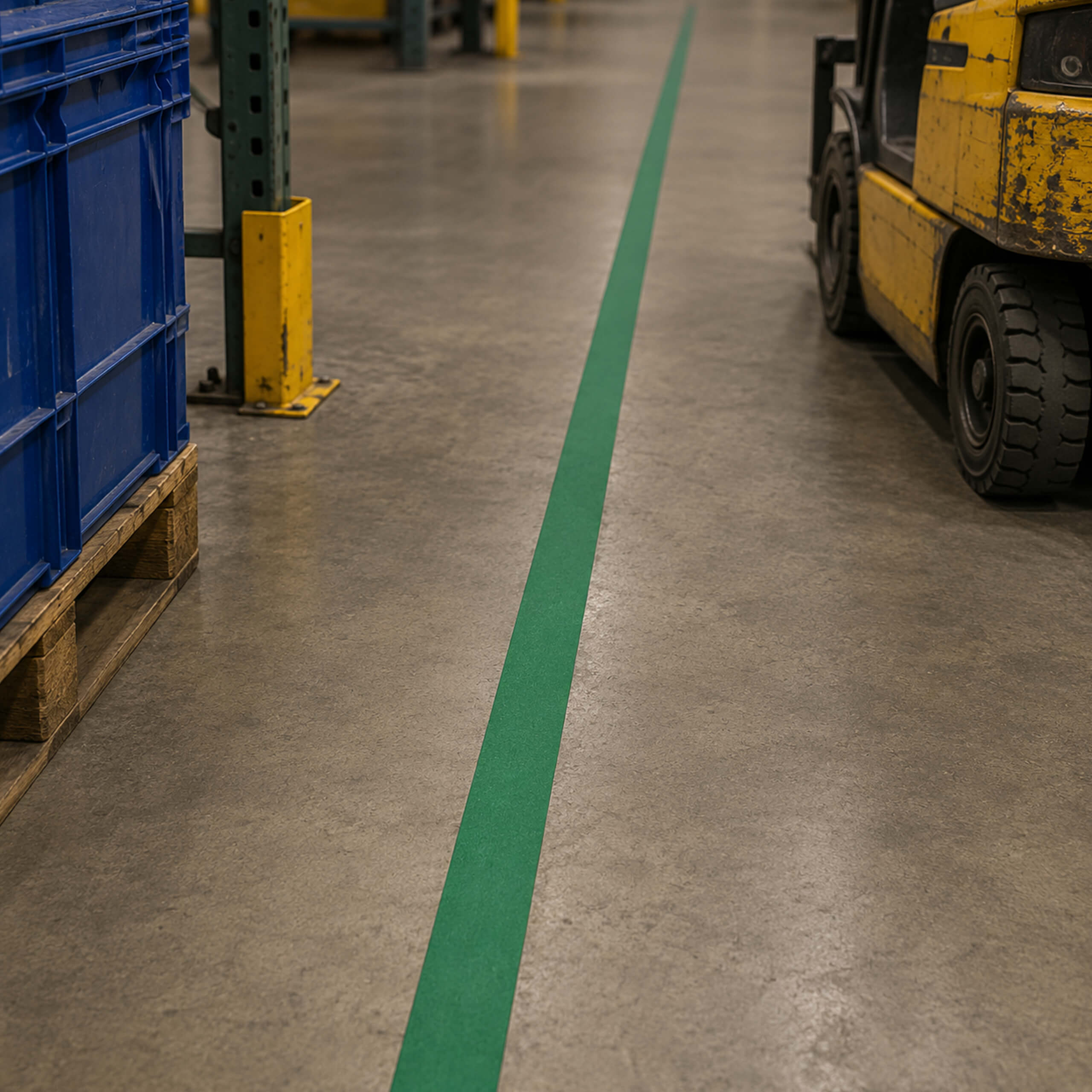

PermaStripe® is the solution, this warehouse line marking is a durable and hard-wearing tape, which also follows and helps to meet all of the requirements for this section of OSHA 1910.22 (Walking-Working Surfaces). If OSHA regulations are not followed, a citation will be issued showing non-conformance with their regulations, these can be followed up with a large fine, going into the hundreds of thousands of dollars, this can affect a companies reputation, and cripple them financially. Heskins® realizes that reputation is a key feature of the business. PermaStripe® can solve these problems, what else would you expect from the worlds toughest line marking material?

PermaStripe® Smooth

PermaStripe® Smooth carries all the benefits of our flagship PermaStripe® range, except for one feature. The textured surface is replaced with a completely smooth surface, making for easier cleaning and better aesthetic properties.

Particularly suited to areas and environments with strict hygiene regulations, the smooth surface will prevent harboring of bacteria, while the material itself will allow for an organized, safe workplace. Areas that focus on aesthetics will also receive the same benefit of having an organized working environment, with sleek lines that will complement the rest of the decor.

To request samples, please complete the PermaStripe® Smooth sample request form. (takes you to permastripe.us)

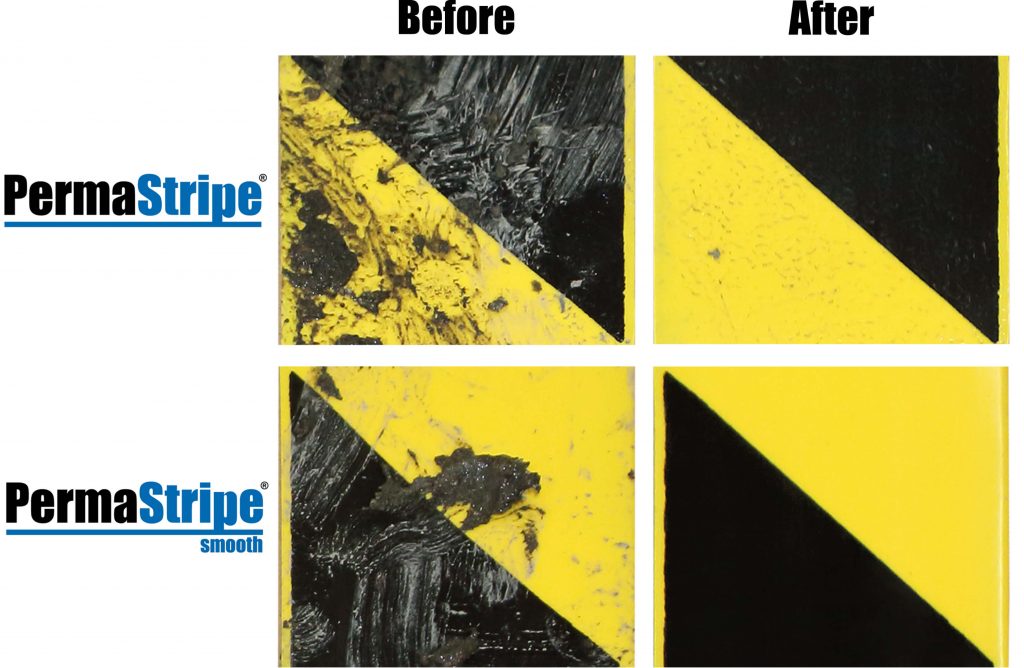

PermaStripe® VS PermaStripe® Smooth, Before and After Cleaning

Mud can get stuck in the patterned surface of PermaStripe®, as by design this ensures a non-slip surface, but due to this design feature, mud can get stuck in the gaps, whereas this doesn’t happen on PermaStripe® Smooth. If you are looking for an easy to clean tape, choose PermaStripe® Smooth, if you’d like t add anti-slip properties, choose PermaStripe®.

Before and After PermaStripe Zoomed Squares - UK and US

PermaStripe® Applicator

The PermaStripe® applicator is the ultimate way to rapidly apply perfect lines; the custom-designed applicator will run at whatever speed you chose to walk at. The PermaStripe® is loaded on the back, the guide rollers then allow for neat application, the backing liner is removed automatically by the applicator machine and neatly stored. We can either rent or sell the line marking tape applicator (rental varies from state-to-state, please enquire).

PermaStripe® 3 Year Guarantee

The Heskins® guarantee for PermaStripe® is conditionally guaranteed for 3 years from product purchase. Warranty claims are only limited to the replacement of PermaStripe®. The warranty does not cover items being dragged, pushed or scraped across such as pallets or transit skids.

If you would like to request samples, please complete the PermaStripe® sample request form. (takes you to permastripe.us)

To enquire further, or place an order, you can contact our sales team via phone or live chat. Alternatively, complete the Make an Enquiry form above, and we will get back to you as soon as possible.

VIDEOS

remove damaged area with a scalpel

measure tape to length

CUT TAPE TO LENGTH

clean surface with H3508 IPA surface cleaner

peel off adhesive film

align tape in place

apply tape using roller

apply h3502 edge fix

DESIGN

Please click on the images to view the Dimensions.

SHAPES (CLICK IMAGES TO VIEW DIMENSIONS)

L

TL213– 7″ x 7″

T

TL214– 11″ x 7″

X

TL212– 11″ x 11″

DOT

TL303– 2″

DOT

TL210– 3.5″

SHORT ARROW

TL209– 3.5″ X 3″

FEET (CLICK IMAGES TO VIEW DIMENSIONS)

FEET

TL150– 4.15″ x 11″

FEET

TL151– 2.5″ x 4″

FEET

TL152– 4.7″ x 8.2″

SHOE

TL242– 9.4″ x 3.2″

BOOTS

TL153– 4.7″ x 11.8″

JOINS (CLICK IMAGES TO VIEW DIMENSIONS)

90° CORNER

TL211– 3.5″ x 3.5″

90° CORNER

TL63– 5″ x 5″

90° CORNER

TL66– 7″ x 7″

45° CORNER

TL300– 3.3″ x 2.7″

45° CORNER

TL301– 5″ x 4.5″

45° CORNER

TL302– 6.7″ x 5.5″

T-JUNCTION

TL291– 5.75″ x 3.93″

T-JUNCTION

TL292– 8.6″ x 5.9″

T-JUNCTION

TL293– 11.4″ x 7.87″

BRIDGE

TL297– 5.5″ x 2.75″

BRIDGE

TL298– 8.2″ x 4.13″

BRIDGE

TL299– 11″ x 5.5″

END CAP

TL294– 2.75″ x 1.37″

END CAP

TL295– 4.13″ x 2″

END CAP

TL296– 5.5″ x 2.75″

NUMBERS (CLICK IMAGES TO VIEW DIMENSIONS)

0

TL240– 3.5″

TL246– 7″

1

TL240– 3.5″

TL246– 7″

2

TL240– 3.5″

TL246– 7″

3

TL240– 3.5″

TL246– 7″

4

TL240– 3.5″

TL246– 7″

5

TL241– 3.5″

TL247– 7″

6

TL241– 3.5″

TL247– 7″

7

TL241– 3.5″

TL247– 7″

8

TL241– 3.5″

TL247– 7″

9

TL241– 3.5″

TL247– 7″

LETTERS (CLICK IMAGES TO VIEW DIMENSIONS)

A

TL236– 3.5″

TL242– 7″

B

TL236– 3.5″

TL242– 7″

C

TL236– 3.5″

TL242– 7″

D

TL236– 3.5″

TL242– 7″

E

TL236– 3.5″

TL242– 7″

F

TL236– 3.5″

TL242– 7″

G

TL237– 3.5″

TL243– 7″

H

TL237– 3.5″

TL243– 7″

I

TL237– 3.5″

TL243– 7″

J

TL237– 3.5″

TL243– 7″

K

TL237– 3.5″

TL243– 7″

L

TL237– 3.5″

TL243– 7″

M

TL237– 3.5″

TL244– 7″

N

TL238– 3.5″

TL244– 7″

O

TL238– 3.5″

TL244– 7″

P

TL238– 3.5″

TL244– 7″

Q

TL238– 3.5″

TL244– 7″

R

TL238– 3.5″

TL244– 7″

S

TL238– 3.5″

TL244– 7″

T

TL238– 3.5″

TL245– 7″

U

TL239– 3.5″

TL245– 7″

V

TL239– 3.5″

TL245– 7″

W

TL239– 3.5″

TL245– 7″

X

TL239– 3.5″

TL245– 7″

Y

TL239– 3.5″

TL245– 7″

Z

TL239– 3.5″

TL245– 7″

PERM_N

Pantone / RAL
Black 6 U / 9004

Average LRV
2.35

Black

PERM_R

Pantone / RAL
199 U / 3018

Average LRV
17.99

Red

PERM_O

Pantone / RAL
021 U / 2009

Average LRV
35.74

Orange

PERM_Y

Pantone / RAL
106 U / 1018

Average LRV
49.89

Yellow

PERM_F

Pantone / RAL
803 U / 1016

Average LRV
72.26

Fluorescent Yellow

PERM_V

Pantone / RAL
Green U / 6018

Average LRV
24.22

Green

PERM_B

Pantone / RAL
299 U / 5012

Average LRV
18.77

Blue

PERM_J

Pantone / RAL
282 U / 5013

Average LRV
14.86

Dark Blue

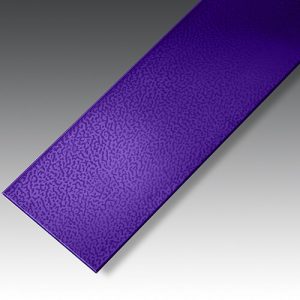

PERM_P

Pantone / RAL
268 C / 4007

Average LRV
7.27

Purple

PERM_W

Pantone / RAL
7541 U / 9003

Average LRV
80.29

White

PERM_Z

Pantone / RAL
Black: 2.35
Yellow: 49.89

Average LRV
Black: 2.13
Yellow: 7.82

Black/Yellow Hazard

PERM_A

Pantone / RAL
Red: 485 U / 3001
White: 7541 U/ 9003

Average LRV
Red: 21.39
White: 74

Red/White Hazard

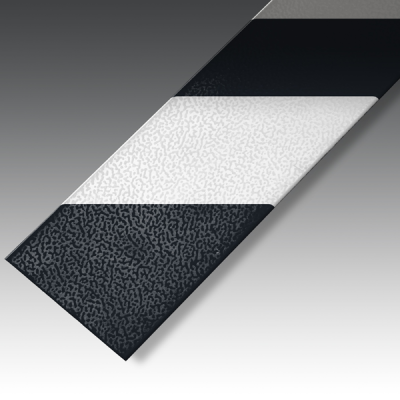

PERM_E

Pantone / RAL
Black: Black 6 U / 9004
White: 7541 U / 9003

Average LRV
Black: 2.83
White: 80.38

Black/White Hazard

DOWNLOADS

LIGHT REFLECTANCE VALUES

PRODUCT CODE COLOR AV.LRV RANGE
PERM_N Black 2.35 1.96
PERM_R Red 17.99 2.71
PERM_O Orange 35.74 0.56
PERM_Y Yellow 49.89 10.36
PERM_F Fluorescent Yellow 72.26 4.04
PERM_V Green 24.22 3.74
PERM_B Blue 18.77 1.79
PERM_J Dark Blue 14.86 3.49
PERM_X Glow in the Dark 24.64 1.43
PERM_W White 80.29 2.74
PERM_Z Black / Yellow Hazard 2.35 / 49.89 2.13 / 7.82
PERM_A Red / White Hazard 21.39 / 74 1.66 / 4.23
PERM_E Black / White Hazard 2.83 / 80.38 1.81 / 2.3
PERM_P Purple 7.27 1.37
