Reflective Tape

REF

  • Mark out hazardous objects and areas
  • Various colors available
  • Roll widths from 1/2″ to 48″

Reflective Tape

Suitable For Cars & Trailers

Waterproof Reflective Tape

Smooth Surface

Heskins reflective tape is a glass bead, engineering-grade, self-adhesive high visibility tape. Suitable for marking out potentially hazardous or dangerous areas, it can be effectively used in any environment and takes minutes to apply.

Sizes

We can offer reflective marking tape in widths anywhere from ½ inch to 4ft, but as always, dependant on quantity, we can cater to your requirements. The lengths of these rolls can be 33ft or 150ft.  All the colors mentioned above are stocked in large quantities, so can be shipped immediately, and samples are available on request.

Custom Reflective Tape

For resellers we can offer a host of options, due to our production conversion machines we can offer shorter rolls of reflective tape, custom retail packs, specific core sizes and any other specifics you would like.

Reflective marking tape can also be printed on, so 24’ rolls can be produced to accommodate most machines in the industry sector

Heskins reflective safety tape is coated with a permanent high visibility adhesive layer, which allows for a long term bond, which will not break down in hazardous or testing conditions. A paper backing liner is applied to protect the PSA (pressure sensitive adhesive) prior to application.

Left and Right Hand Versions

At Heskins, we offer right-hand and left-hand versions of our reflective hazard tape. The right-hand variant is on the right and the left-hand variant is on the left.

H6601 Hazard Reflective Tape Left Hand + Right Hand Dimensions Heskins LLC

We can offer left and right-hand variants of our reflective hazard tape in as many sizes as our solid color reflective marking tape.

If you would like to make an enquiry or place an order, please speak to us us by phone or live chat. Alternatively, submit the Make an Enquiry form above and we will get back to you as soon as possible. We would love to hear from you.

To order or enquire further, you can contact us by phone, Live Chat or alternatively complete the Contact Us form above and we will get back to you as soon as possible.

VIDEOS

MEASURE TAPE TO LENGTH

cut tape to length

peel of adhesive film

align tape & apply

DESIGN

Please click on the images to view the Dimensions.

L

TL528 – 200mm x 200mm

REF_R

Pantone /RAL
Warm Red U/3020

Average LRV
14

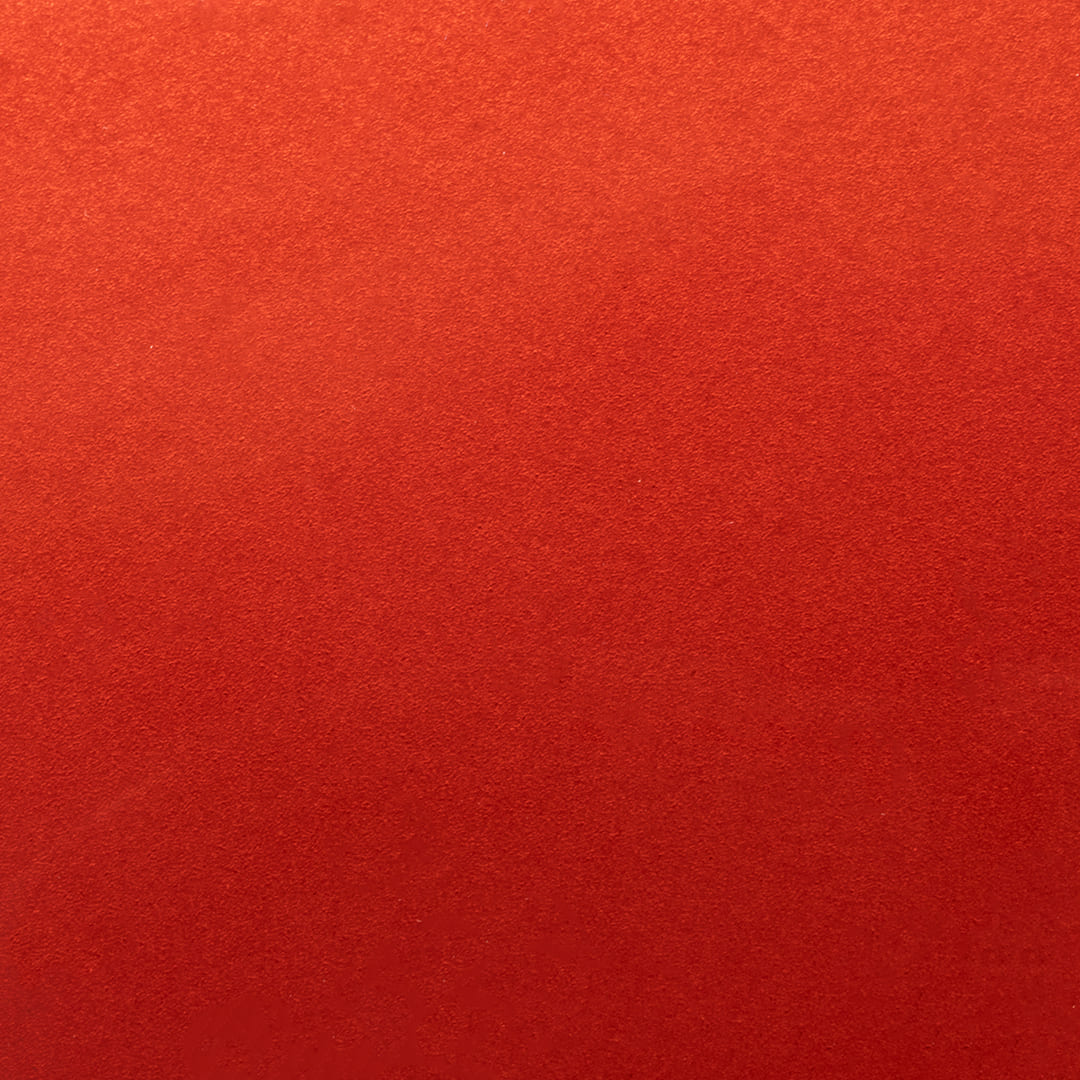

Red

REF_O

Pantone /RAL
1021U/2008

Average LRV
28

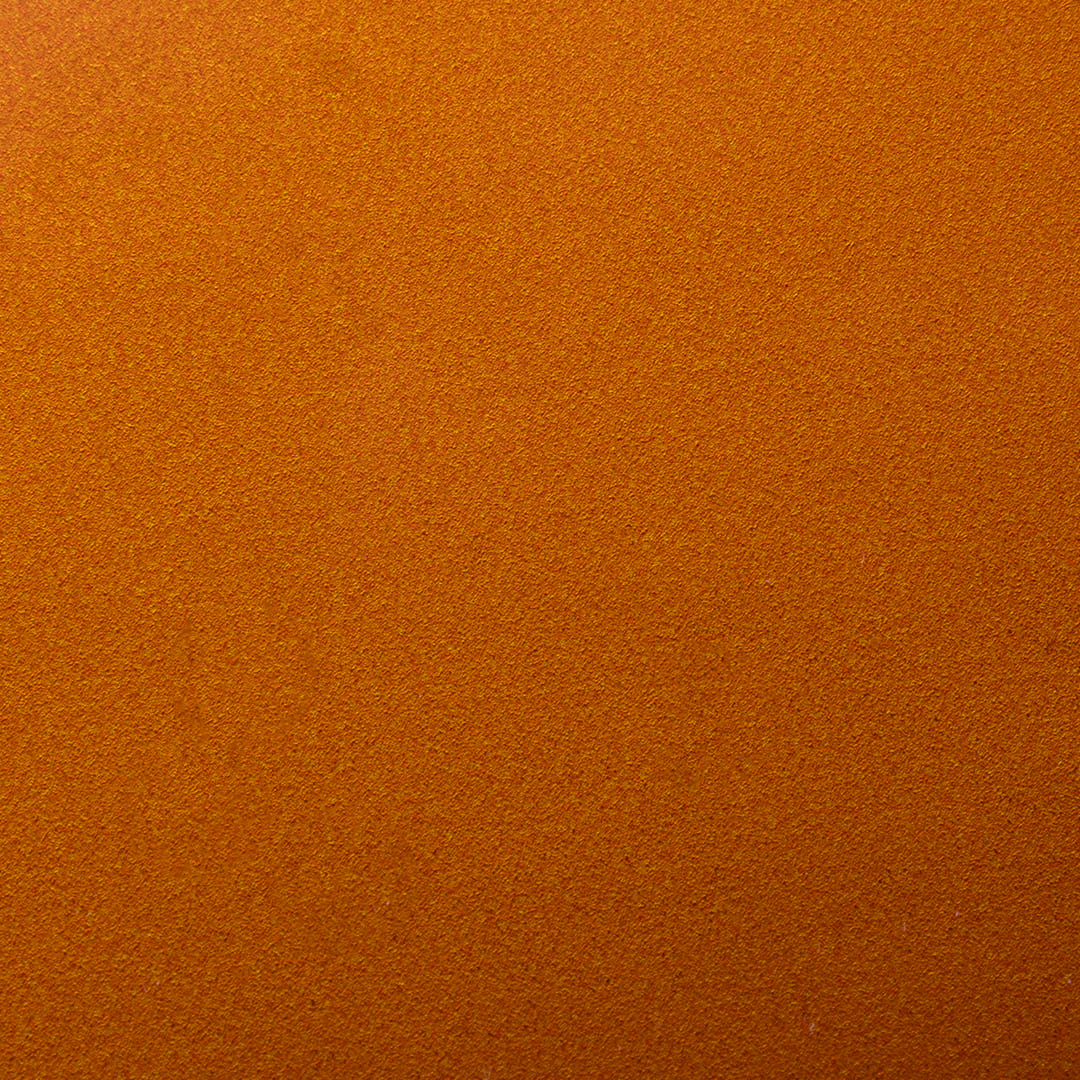

Orange

REF_Y

Pantone /RAL
114U/1023

Average LRV
65.25

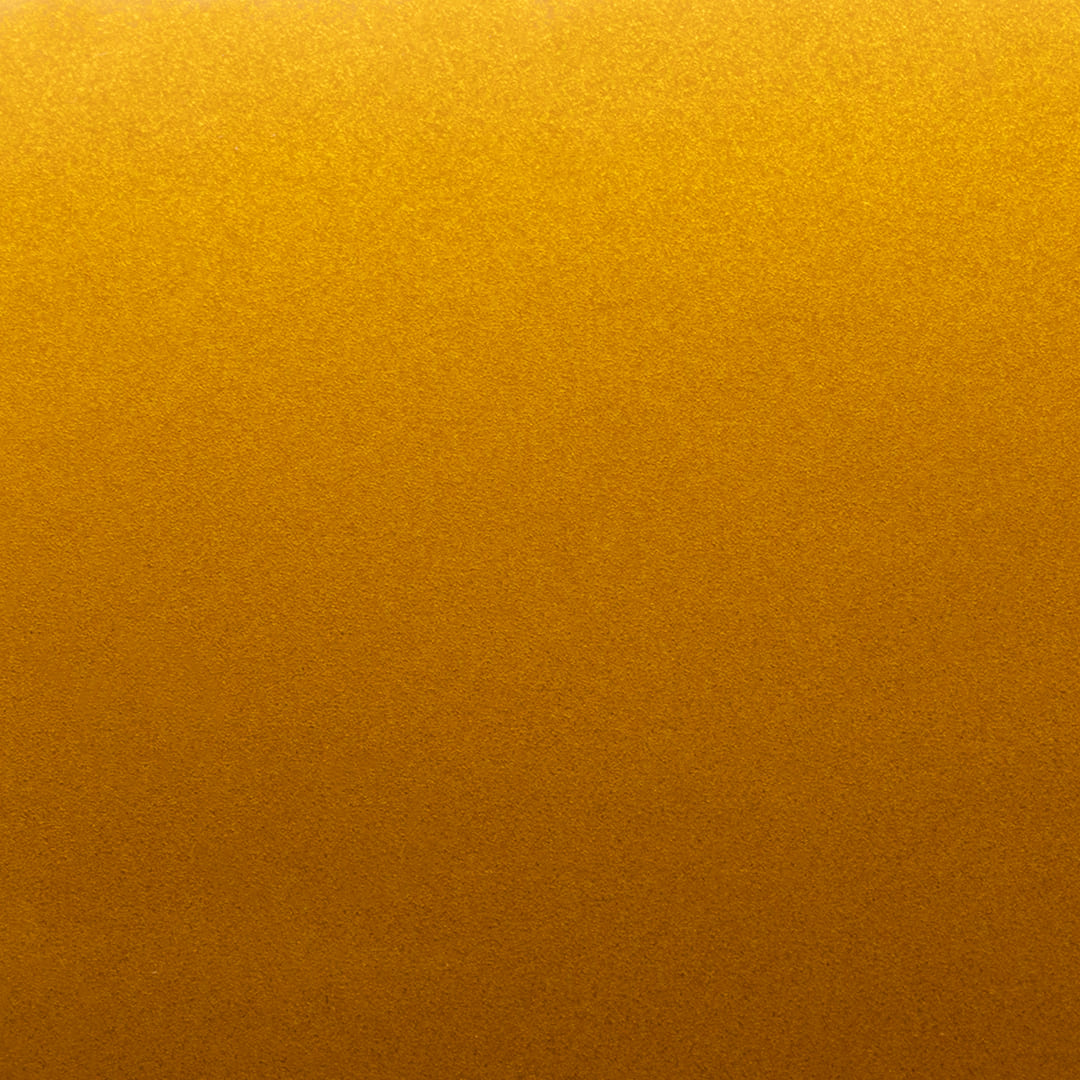

Yellow

REF_V

Pantone /RAL
569U/6032

Average LRV
41

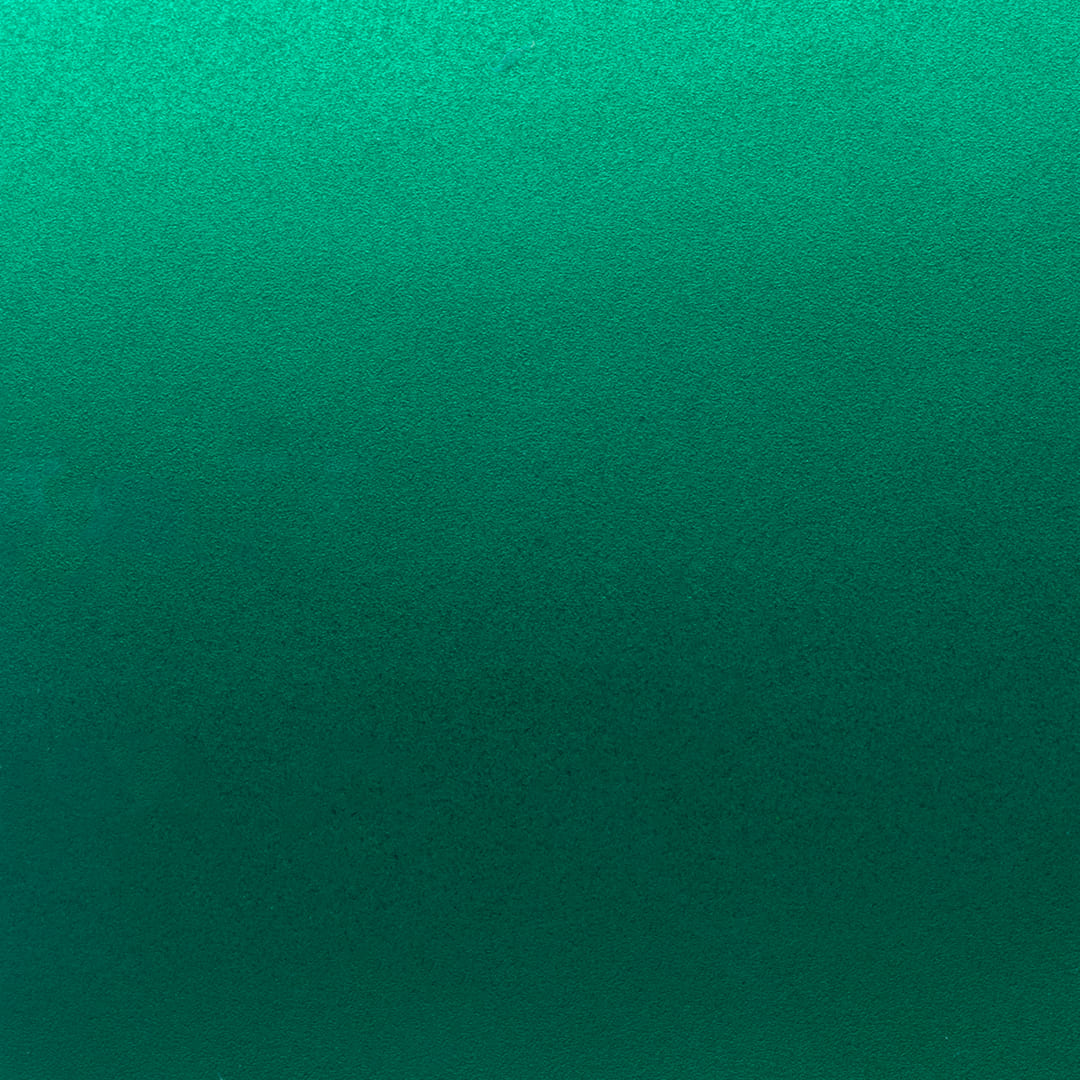

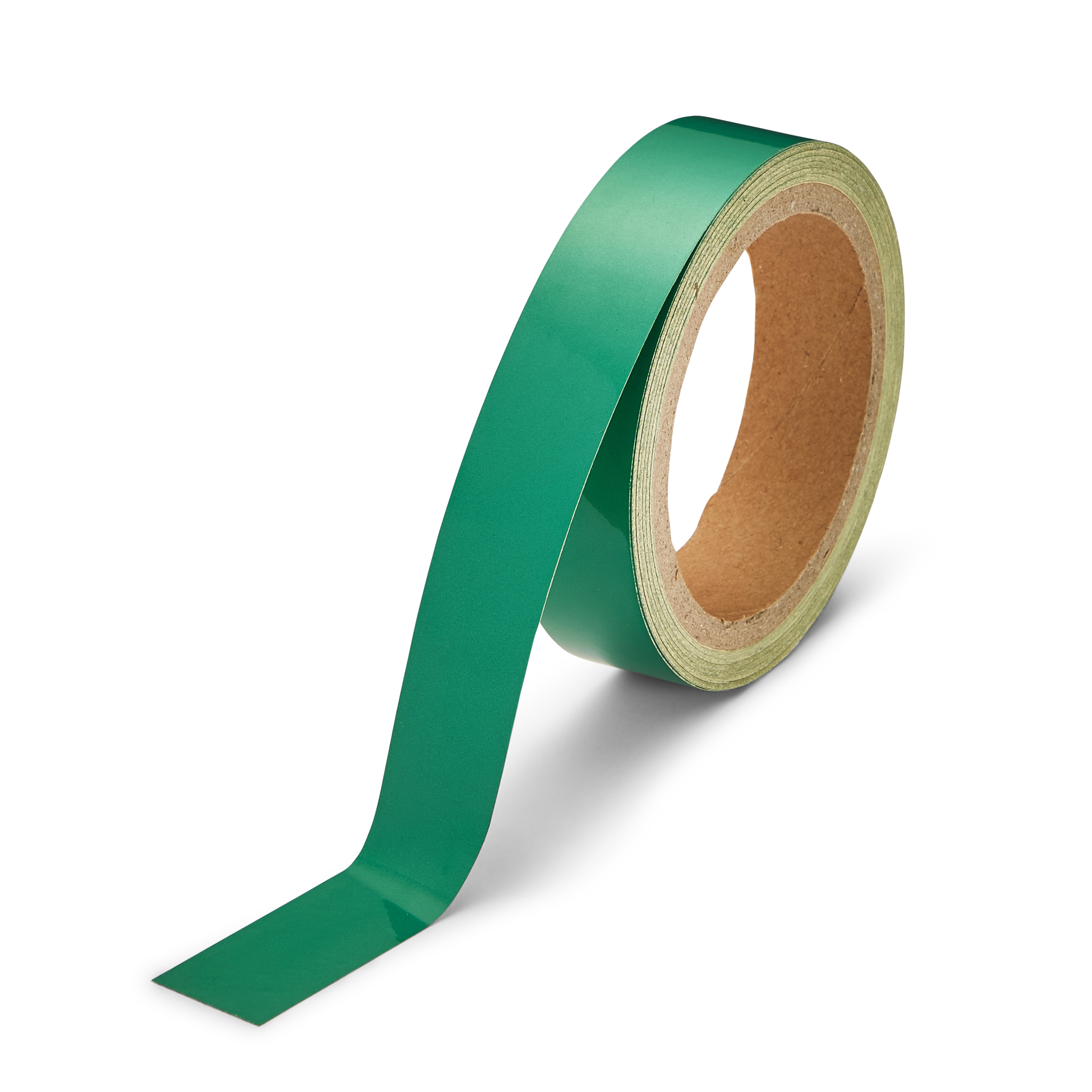

Green

REF_B

Pantone /RAL
3005U/5017

Average LRV
7

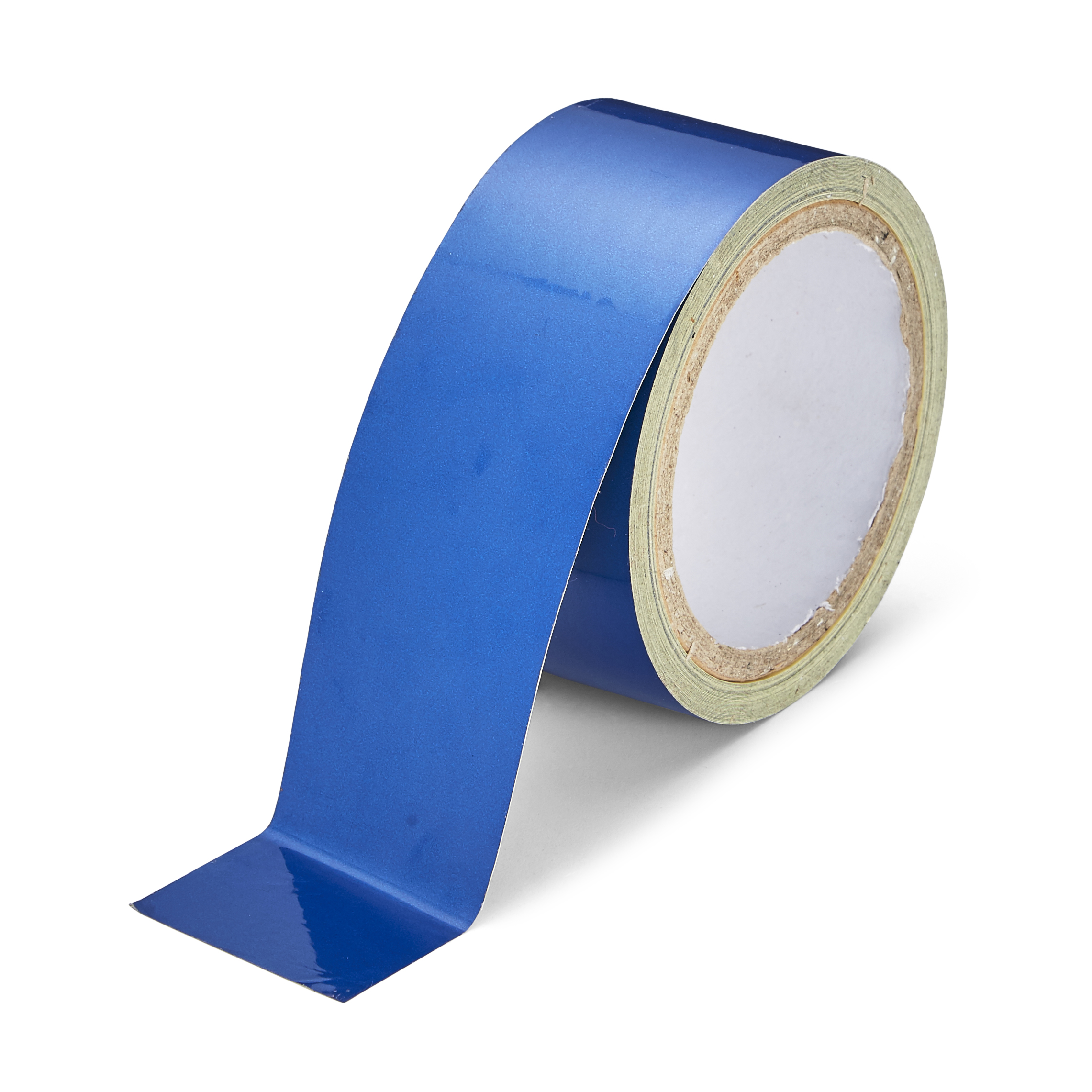

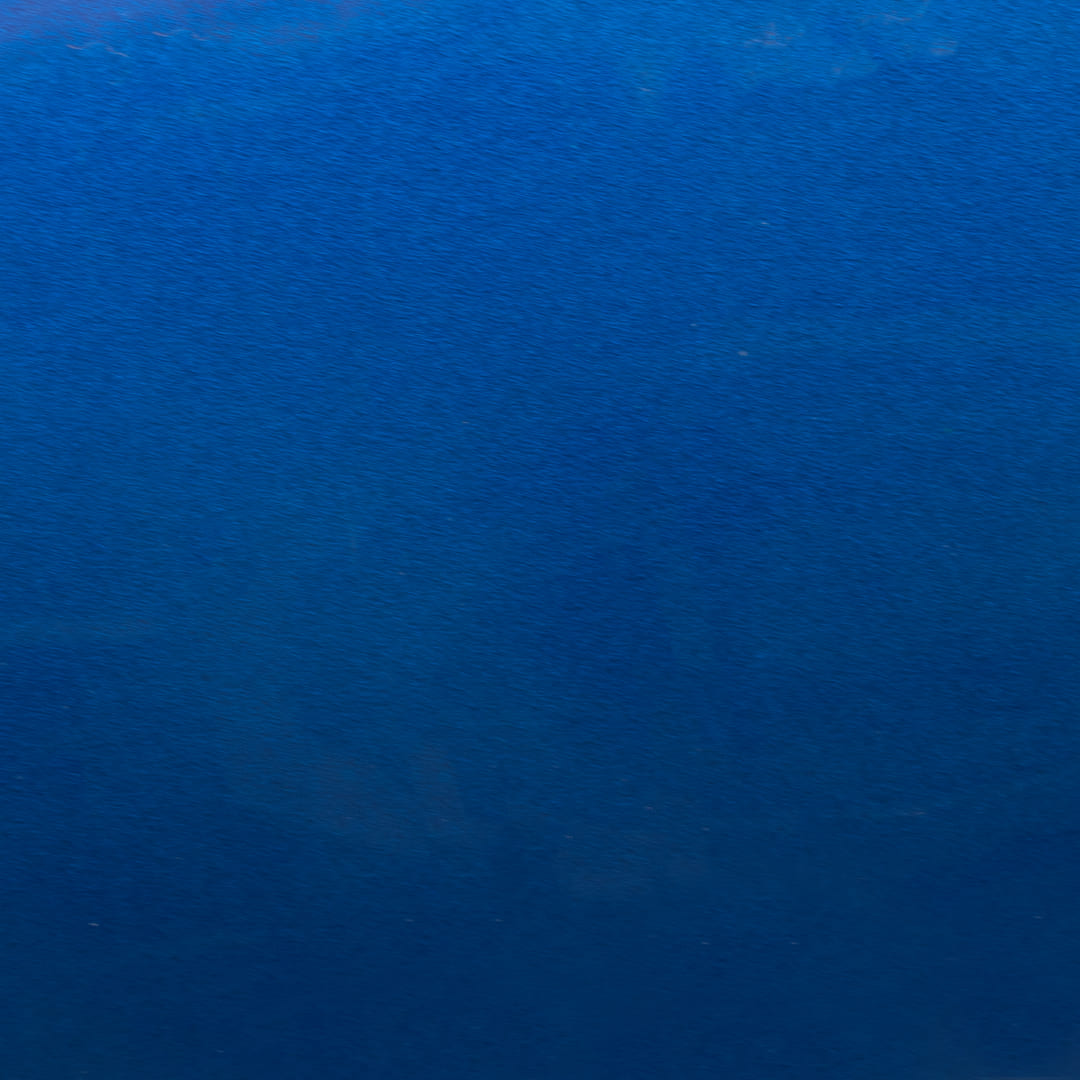

Blue

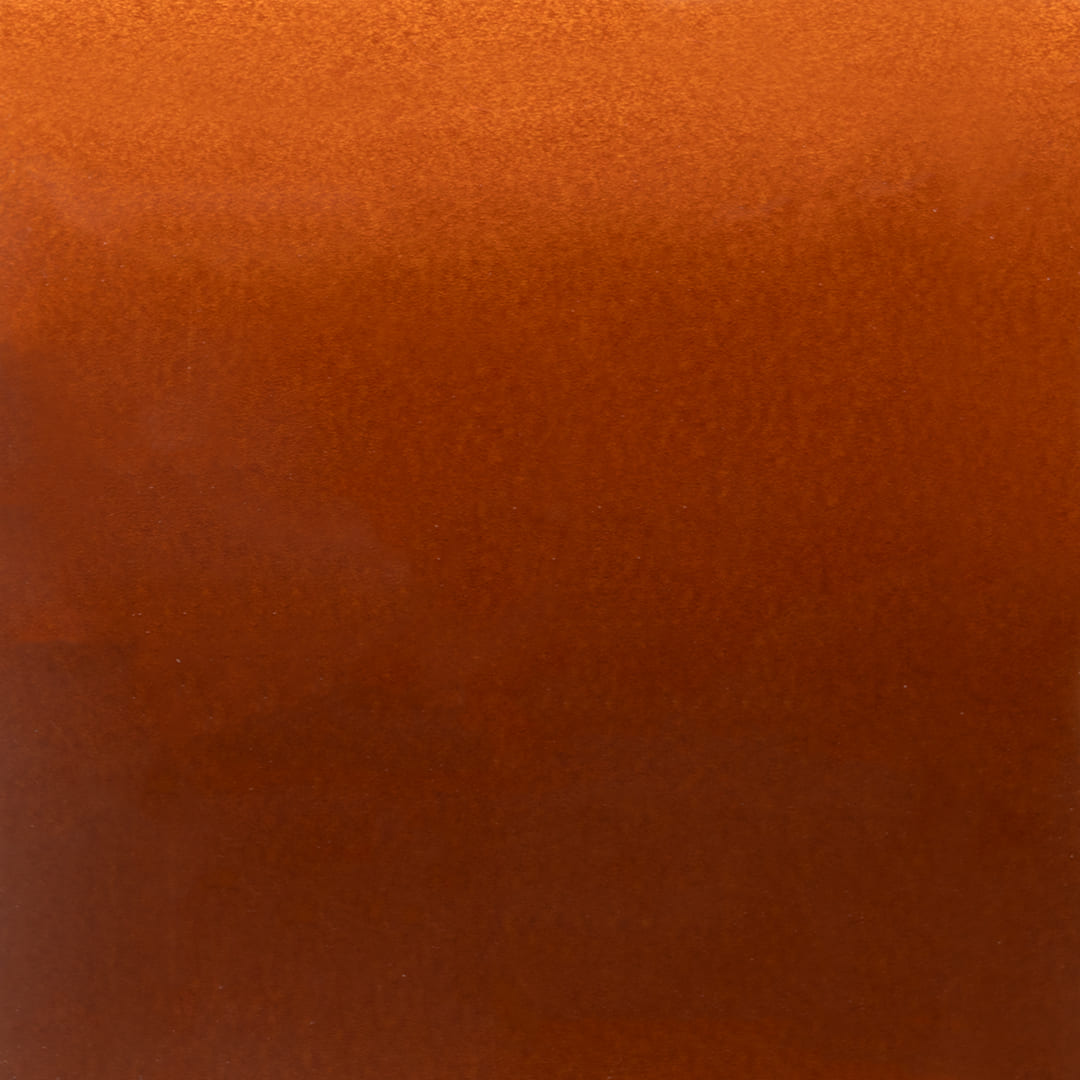

REF_G

Pantone /RAL
484U/8004

Brown

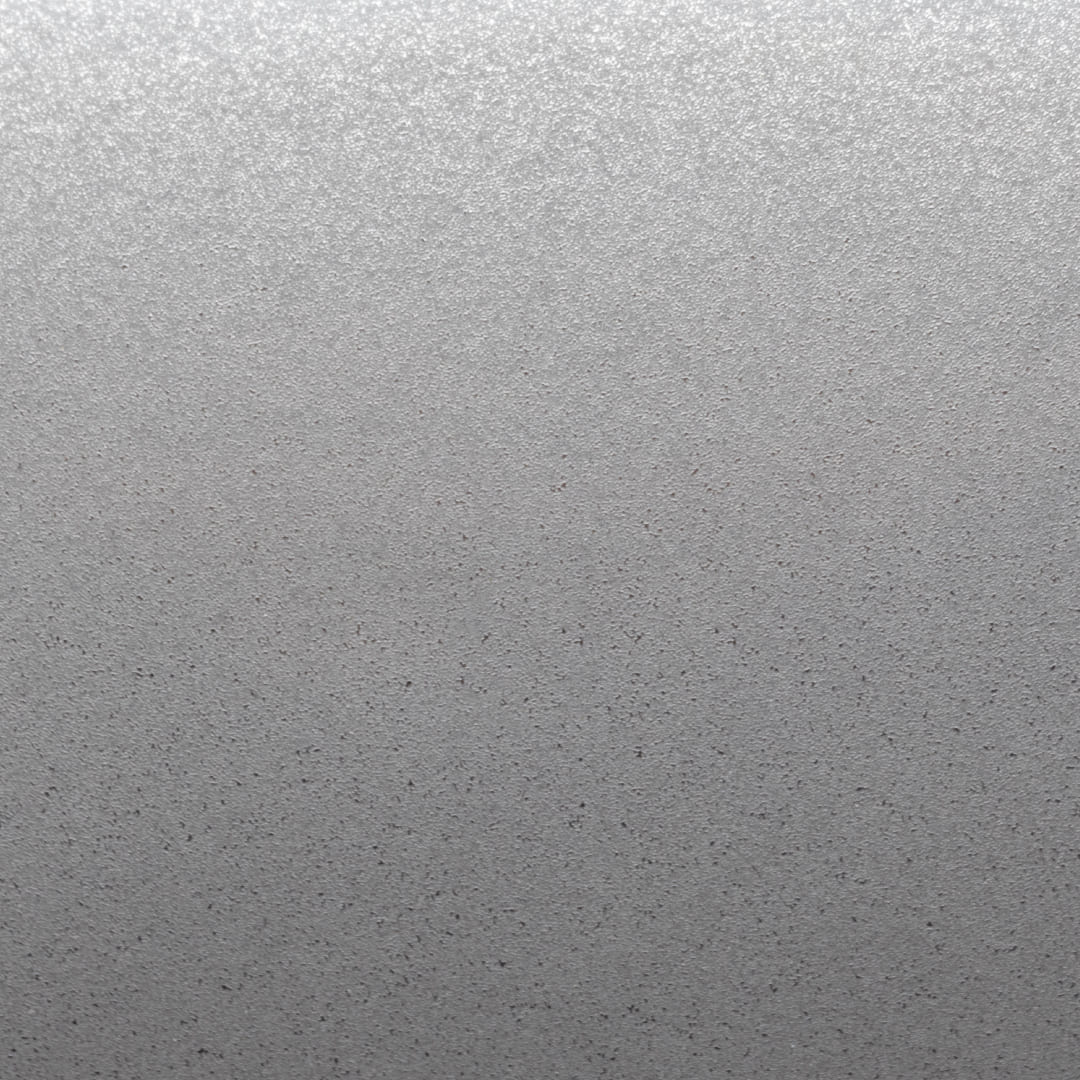

REF_W

Pantone /RAL
421/9016

Average LRV
85

White

REF_Z

Pantone /RAL
Black & 116U/9017 & 1006

Average LRV (Black)
0
Average LRV (Yellow)
62

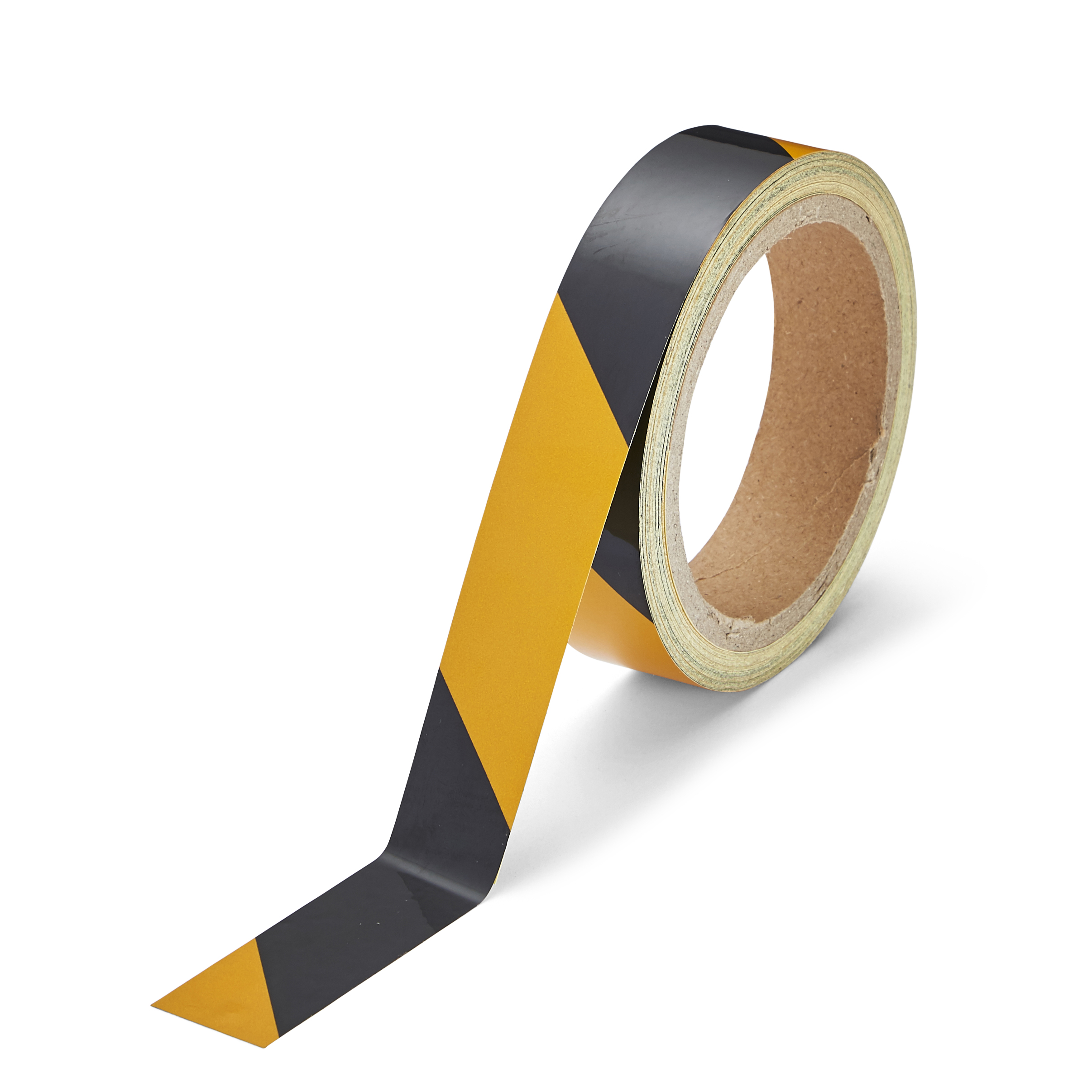

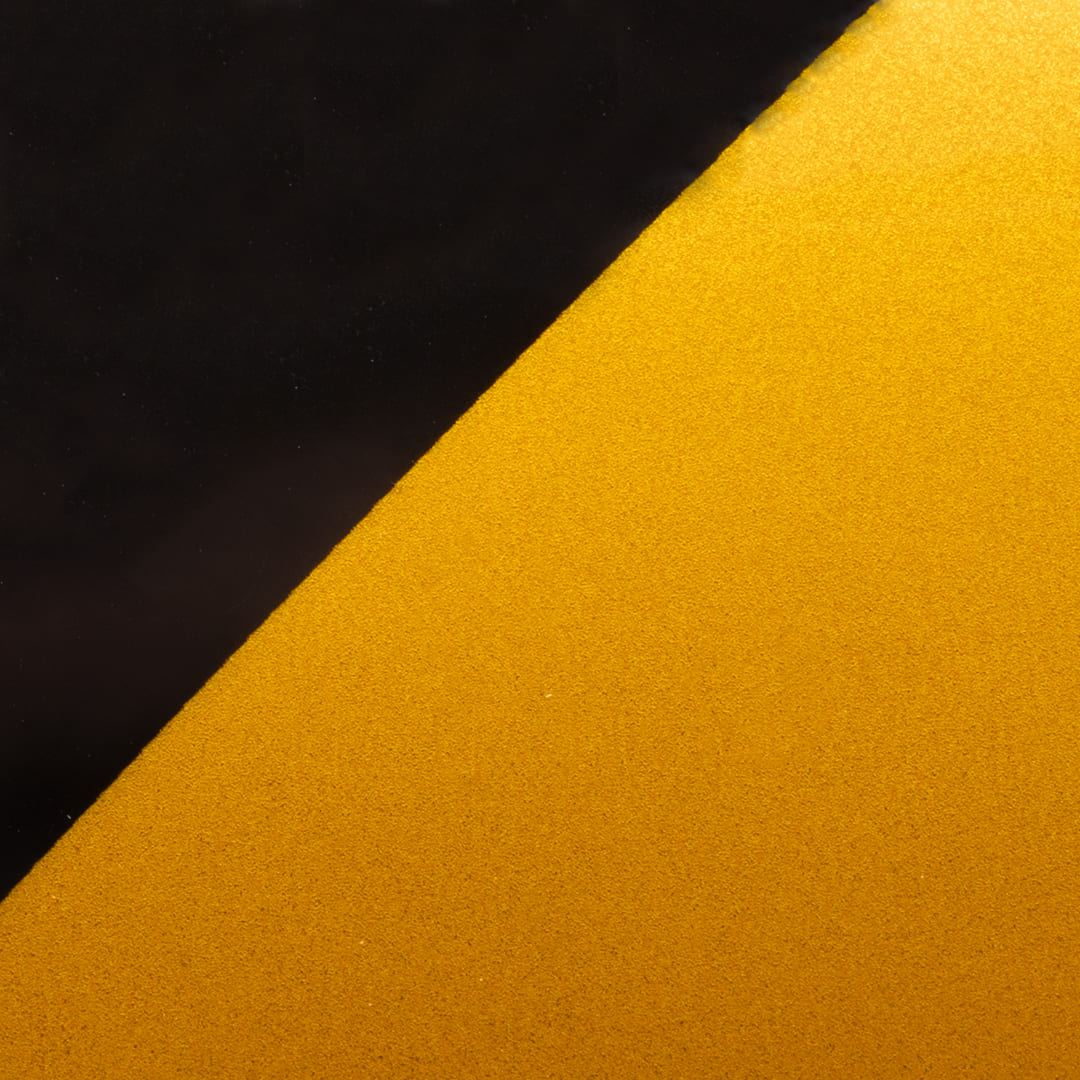

Black/Yellow

REF_A

Pantone /RAL
Warm Red U & 427U/3020 & 7035

Average LRV (Red)
13.5
Average LRV (White)
84

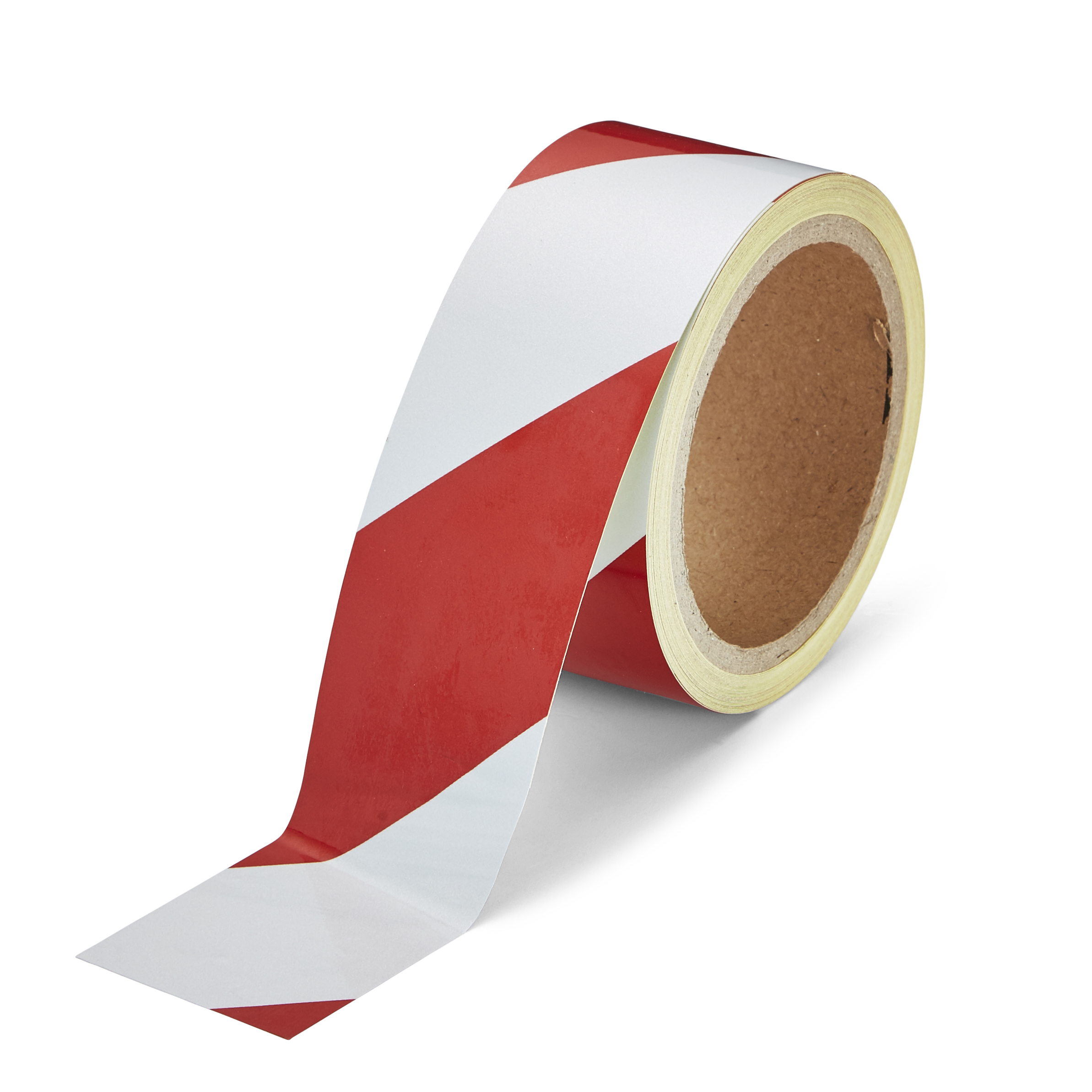

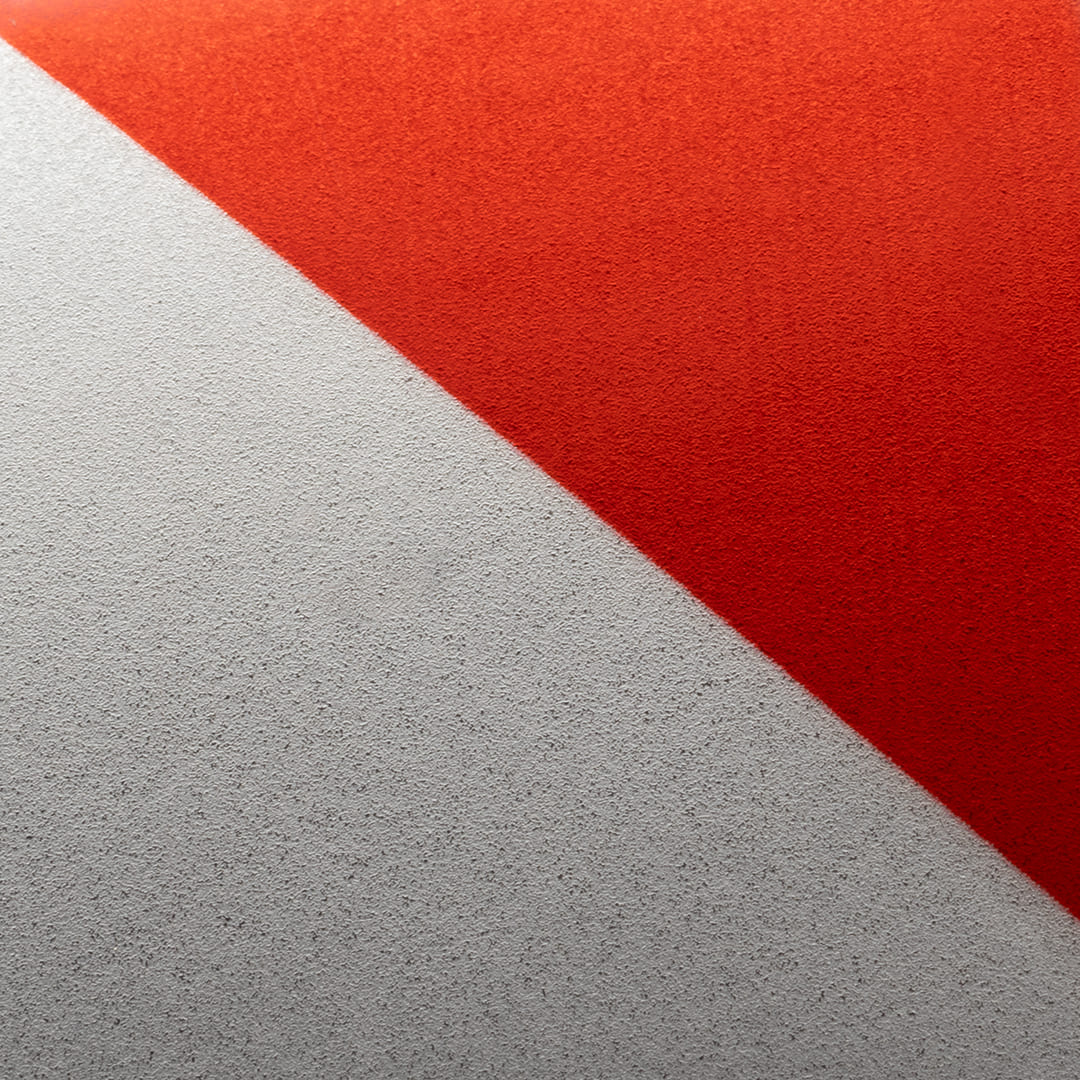

Red/White

DOWNLOADS

LIGHT REFLECTANCE VALUES

PRODUCT CODE COLOR AV. LRV RANGE
REFR Red 14 4
REFO Orange 28 3
REFY Yellow 65.25 2
REFV Green 41 4
REFB Blue 7 2
REFW White 85 0
REFD Black/Yellow Hazard 0/0 0/0
REFA Red/White Hazard 84/ 13.50 0/1

STANDARDS

COUNTRY COLOR REQUIREMENT
International (US/Canada) Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White ASTM D4956 Type I
Europe Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White EN 12899/1 RA1
Australia Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White AS/NZS 1906.1 Class 100
New Zealand Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White AS/NZS 1906.1 Class 100
China Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White GB/T 18833 Type I
Mexico Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White N-CMT-5-03-001 Tipo A
Spain Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White UNE 135334
France Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White NF XP98520
UK Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White BSI 8408
Italy Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White UNI 11122
Japan Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White JIS Z9117
South Africa Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White SANS 1519-1
Brazil Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White ABNT NBR 14644
Argentina Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White IRAM 10 033
