PermaRoute®

Product code: ROUT

Layered construction
Laminated, colour surface print
Low profile
960mu thick
Roll widths up to 1168mm
Free samples (takes you to permastripe.co.uk)
2-year guarantee

Overview
Video
Colours
Designs

PermaRoute® is the world’s only complete floor marking system. Over many years we have developed the range to encompass every section of floor marking for factories, warehouses, assembly areas and logistic bases.

With PermaRoute® you’re not restricted to simple lines. It’s a versatile floor marking system that allows you to develop a clear set of visual aids to ensure that your facility not only looks clean and efficient but also helps your process controls.

PermaRoute® can be created bespoke to suit your requirements, we produce lines, angles, joins, shapes and outlines in all industry-standard colours. Our team are experts in specification and can provide advice that has been gathered from delaying with companies as varied as aerospace, automotive, logistics and defence to name a few.

Custom components can be created to your specification further expanding the possibilities of making PermaRoute® a site-wide floor marking solution.

What preparation is required?

Hardly any, the surface merely need to be clean, dry and free from grease. Porous surfaces may need priming prior to application, our team are always happy to help with knowledgeable advice.

What advantage does it hold over paint and resin marking systems?

Major advantages! Unlike liquid systems, the self-adhesive, PermaRoute® floor marking system is instantly applied and the area can be used immediately afterwards. If a colour coded area changes with new aisle marking required then PermaRoute can be removed cleanly as it won’t snap or fracture, and this is really important for food preparation or pharmaceutical areas, as no fumes or solvents are generated.

Is it durable?

Absolutely, this is a 960mu thickness, vastly different and more durable than anything else available.

I have a large site, is there a fast way of applying it?

Look at our applicator (takes you to permastripe.co.uk) available for sale or hire, we completely redesigned it, making it easier to use, easier to transport and cheaper.

We want to be able to display corporate colours throughout our warehouse, as you are a manufacturer is this something you can create?

Very easily, and it is something we do on a weekly basis. We can match any RAL, Pantone or NCS, please enquire for MOQs etc.

PermaRoute® 2-Year Warranty

The Heskins® warranty for PermaRoute® is conditionally warranted for 2 years from product purchase. Warranty claims are only limited to the replacement of PermaRoute®. The warranty does not cover items being dragged, pushed or scraped across such as pallets or transit skids.

If you would like to request samples, please complete the PermaRoute® sample request form. (takes you to permastripe.co.uk)

For more information, please contact us by phone, live chat or alternatively, complete the Make an Enquiry form above and we will get back to you as soon as possible.

Why Choose PermaRoute®?

How to Apply PermaRoute® Letters

How to Apply PermaRoute® Shapes

How To Apply PermaRoute® L Shape Arrows

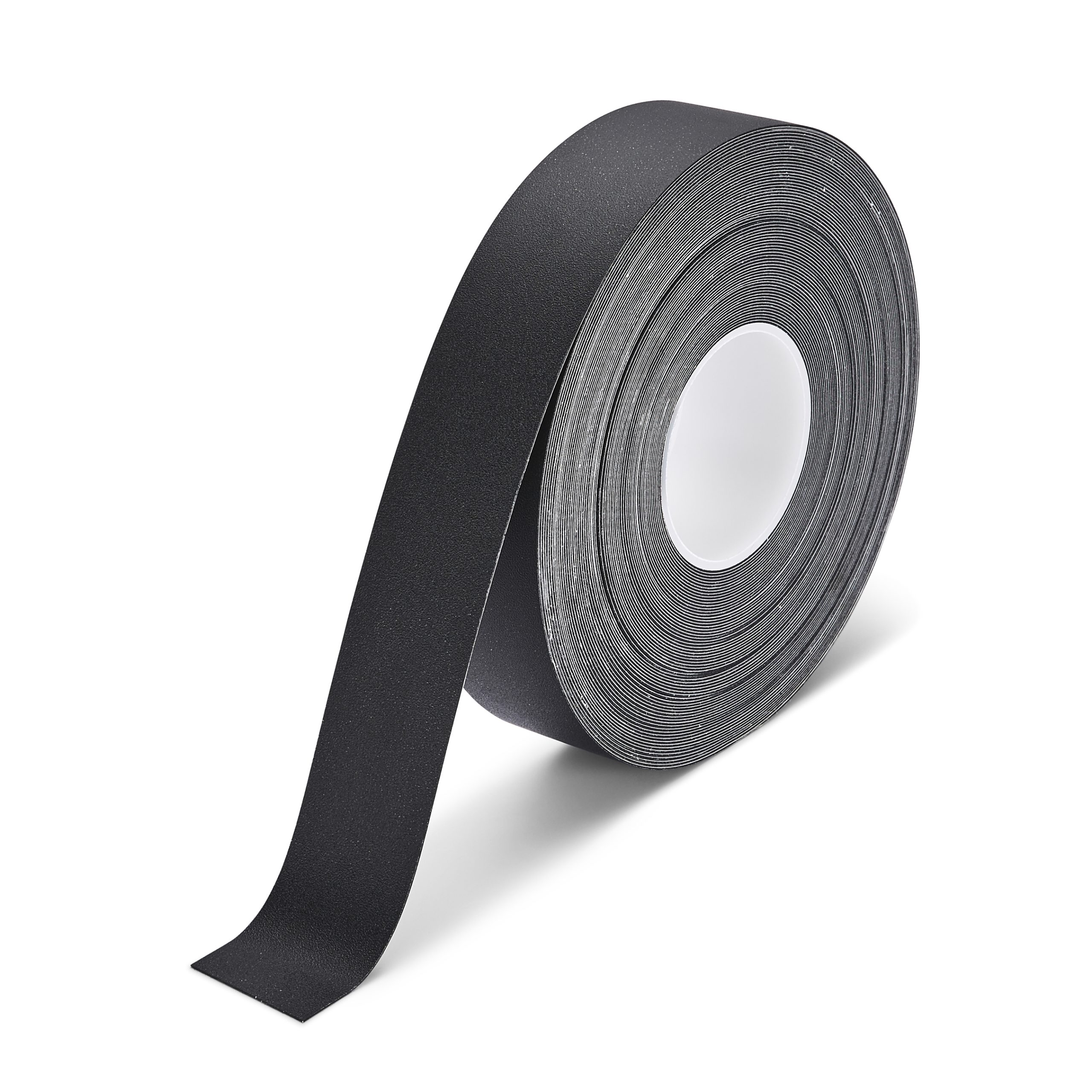

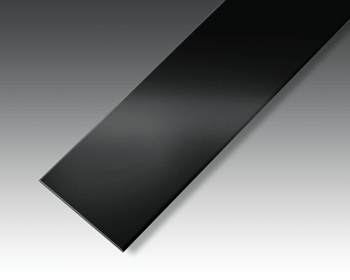

H6903N

Pantone / RAL
Black 6 U / 9004
Average LRV
3.57

Black

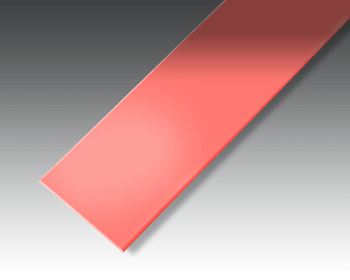

H6903R

Pantone / RAL
1795 U / 3020
Average LRV
16.47

Red

H6903O

Pantone / RAL
021 U / 2009
Average LRV
26.65

Orange

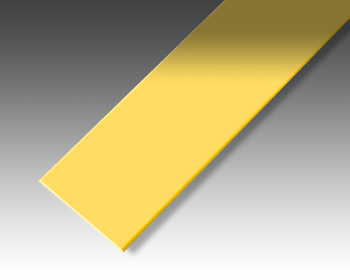

H6903Y

Pantone / RAL
114 U / 1018
Average LRV
43.34

Yellow

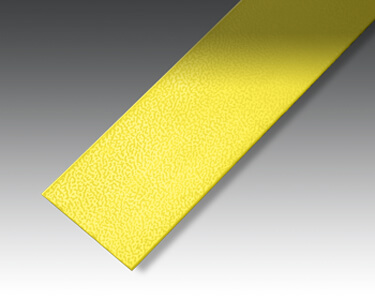

H6903F

Pantone / RAL
803 U / 1016
Average LRV
58.13

Fluorescent Yellow

H6903V

Pantone / RAL
7488 U / 6018
Average LRV
26.83

Green

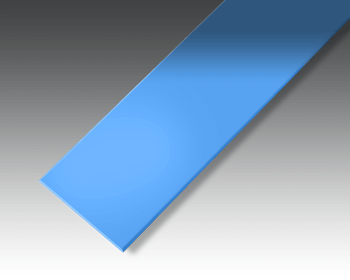

H6903B

Pantone / RAL
2985 U / 5012
Average LRV
18.57

Blue

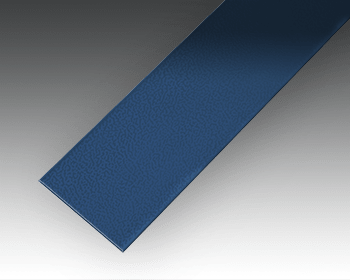

H6903J

Pantone / RAL
2945 U / 5002
Average LRV
6.93

Dark Blue

H6903W

Pantone / RAL
7541 U / 9003
Average LRV
61.76

White

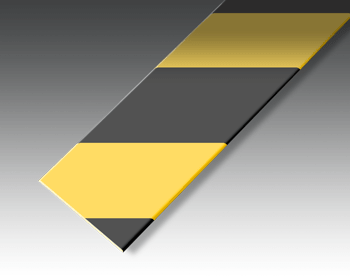

H6903D

Pantone / RAL
Black: Black 6 / 9004
Yellow: 1235 U / 1021
Average LRV:
Black: 4.4
Yellow: 48.9

Black/Yellow Hazard

H6903A

Pantone / RAL
Red: 32 U / 3028
White: White / 9003
Average LRV:
Red: 21.13
White: 66.4

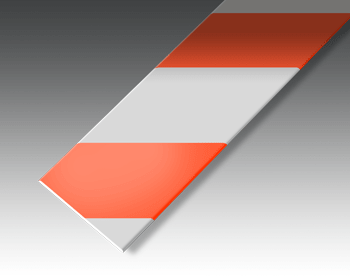

Red/White Hazard

H6903H

Pantone / RAL
Green: 356 U / 6002
White: White / 9010
Average LRV:
Green: 14.20
White: 54.41

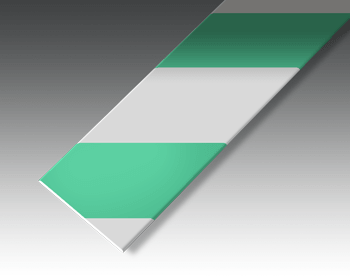

Green/White Hazard

H6903E

Pantone / RAL
Black: Black 6 U / 9004
White: White / 9003
Average LRV
Black: 3.82
White: 55.46

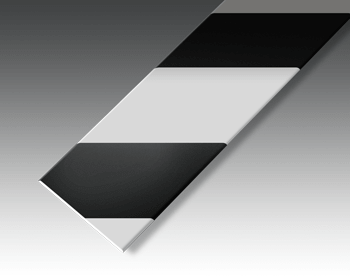

Black/White Hazard

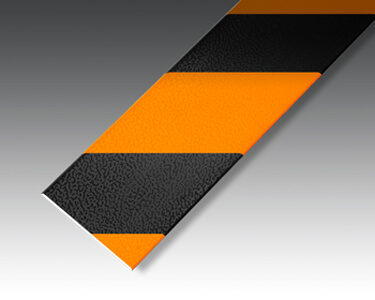

H6903P

Pantone / RAL
Black: Black 6 U / 9004
Orange: 021 U / 2009
Average LRV
Black: 4.83
Orange: 23.1

Black/Orange Hazard

SHAPES (CLICK IMAGES TO VIEW DIMENSIONS)

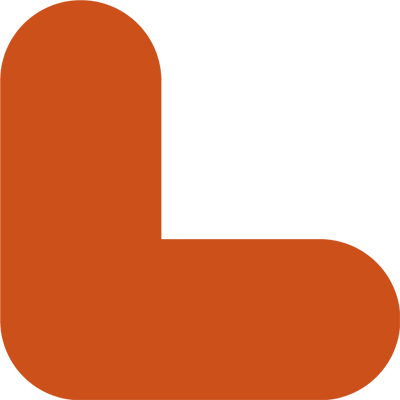

L

TL528 – 200mm x 200mm

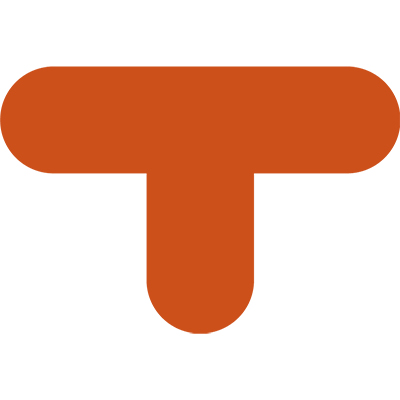

T

TL589 – 300mm x 200mm

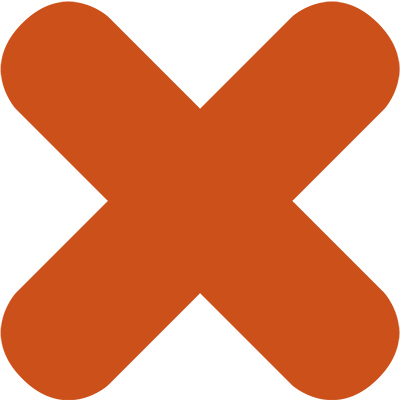

X

TL529 – 300mm x 300mm

DOT

TL6 – 50mm Ø

DOT

TL593 – 90mm Ø

DOT

TL131 – 100mm Ø

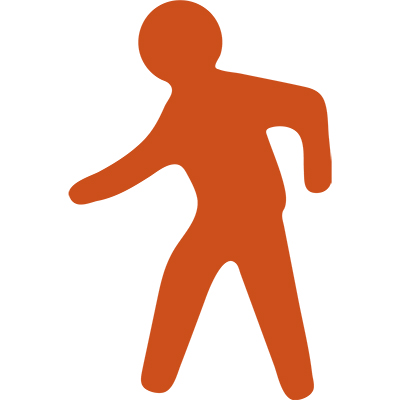

WALKING FIGURE

TL531 – 328mm x 500mm

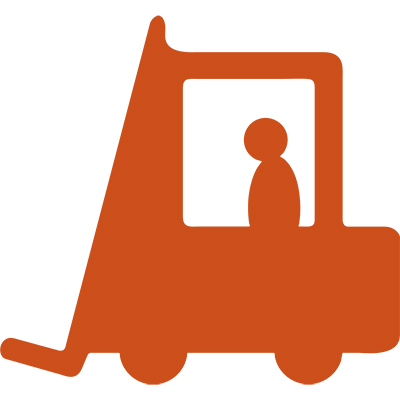

FORKLIFT

TL532 – 543mm x 500mm

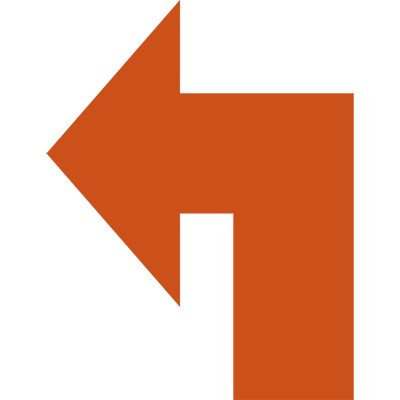

ARROW (LEFT OR RIGHT)

TL1119 – 300mm x 230mm

ARROW

TL1138 – 100mm x 200mm

SMALL ARROW

TL141 – 100mm x 65mm

LARGE ARROW

TL211 – 300mm x 230mm

EXTRA LARGE ARROW

TL970 – 1000mm x 565mm

SHORT ARROW

TL527 – 90mm

LINE BLOCK

TL1134 – 150mm x 50mm

L-SHAPE

TL1132 – 100mm x 100mm

T-SHAPE

TL1133 – 100mm x 150mm

X-SHAPE

TL1131 – 150mm x 150mm

FEET (CLICK IMAGES TO VIEW DIMENSIONS)

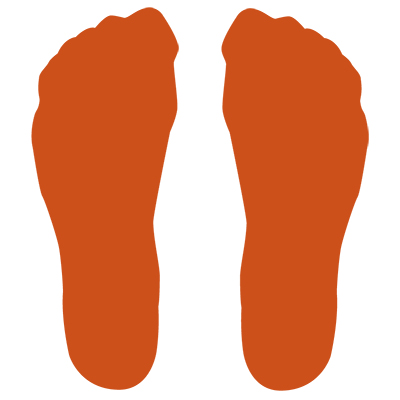

FEET

TL37 – 280mm x 105mm

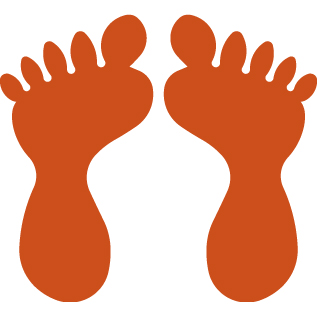

FEET

TL99 – 57mm x 104mm

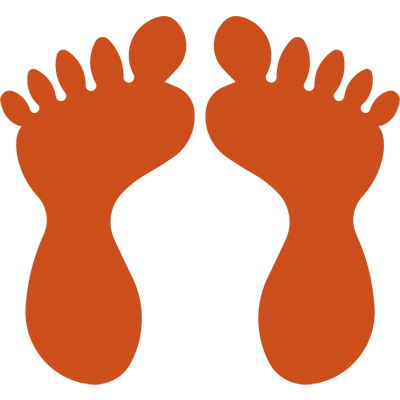

FEET

TL100 – 120mm x 210mm

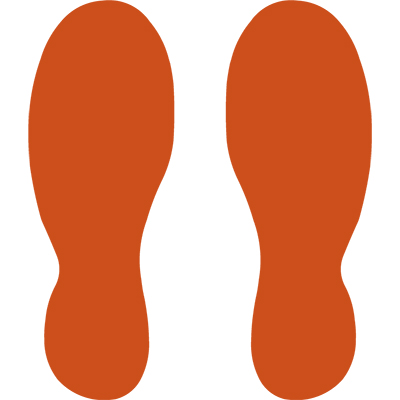

SHOE

TL29 – 240mm x 90mm

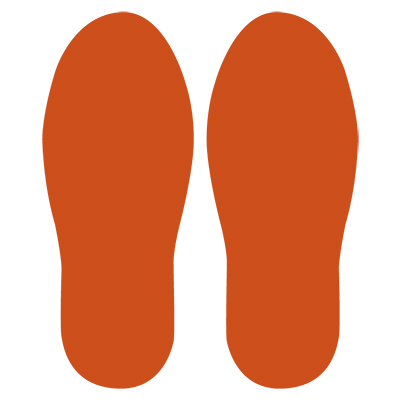

BOOT

TL242 – 300mm x 120mm

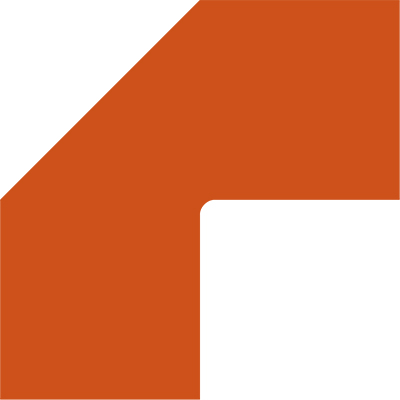

TL622 – To join 100mm rolls

END CAP

TL614 – To join 50mm rolls

END CAP

TL615 – To join 75mm rolls

END CAP

TL616 – To join 100mm rolls

NUMBERS (CLICK IMAGES TO VIEW DIMENSIONS)

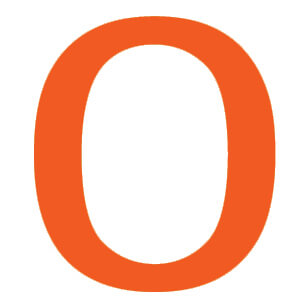

ZERO

TL159 – 95mm TL1212 – 180mm TL1339 – 300mm

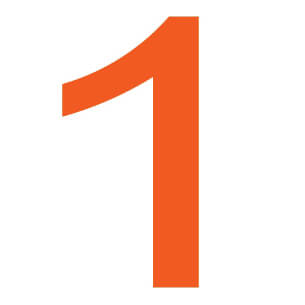

1

TL159 – 95mm TL1212 – 180mm TL1340 – 300mm

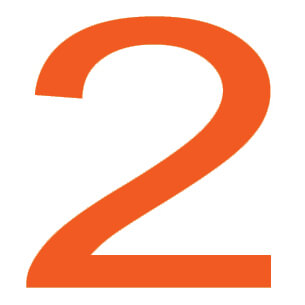

2

TL159 – 95mm TL1212 – 180mm TL1341 – 300mm

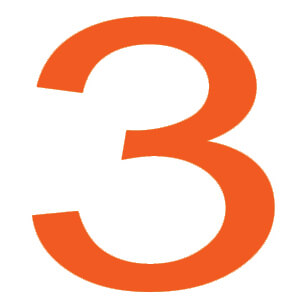

3

TL159 – 95mm TL1212 – 180mm TL1342 – 300mm

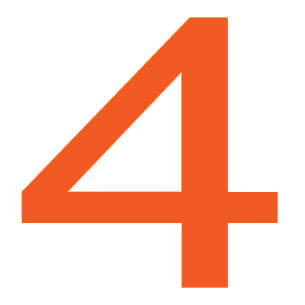

4

TL159 – 95mm TL1212 – 180mm TL1343 – 300mm

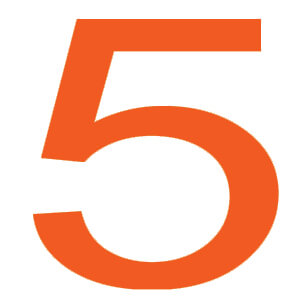

5

TL159 – 95mm TL1213 – 180mm TL1344 – 300mm

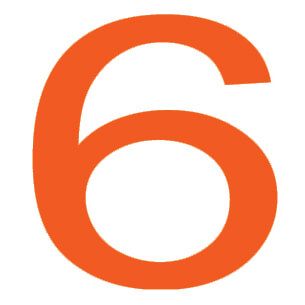

6

TL159 – 95mm TL1213 – 180mm TL1345 – 300mm

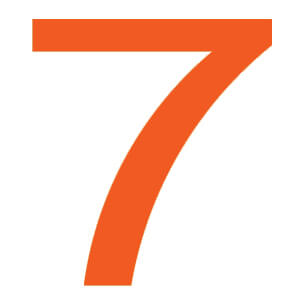

7

TL159 – 95mm TL1213 – 180mm TL1346 – 300mm

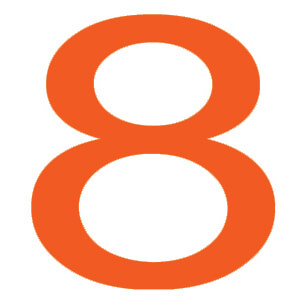

8

TL159 – 95mm TL1213 – 180mm TL1347 – 300mm

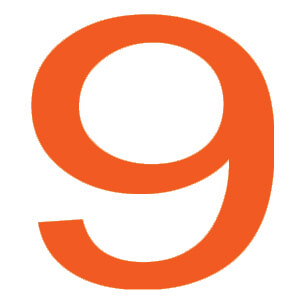

9

TL159 – 95mm TL1213 – 180mm TL1348 – 300mm

TL162 – 95mm TL446 – 180mm

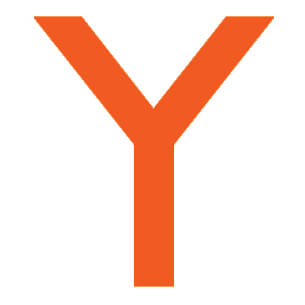

Y

TL162 – 95mm TL446 – 180mm

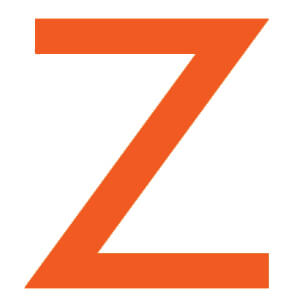

Z

TL162 – 95mm TL446 – 180mm

WALKWAYS & CROSSINGS

WALKWAY

300mm x 1m

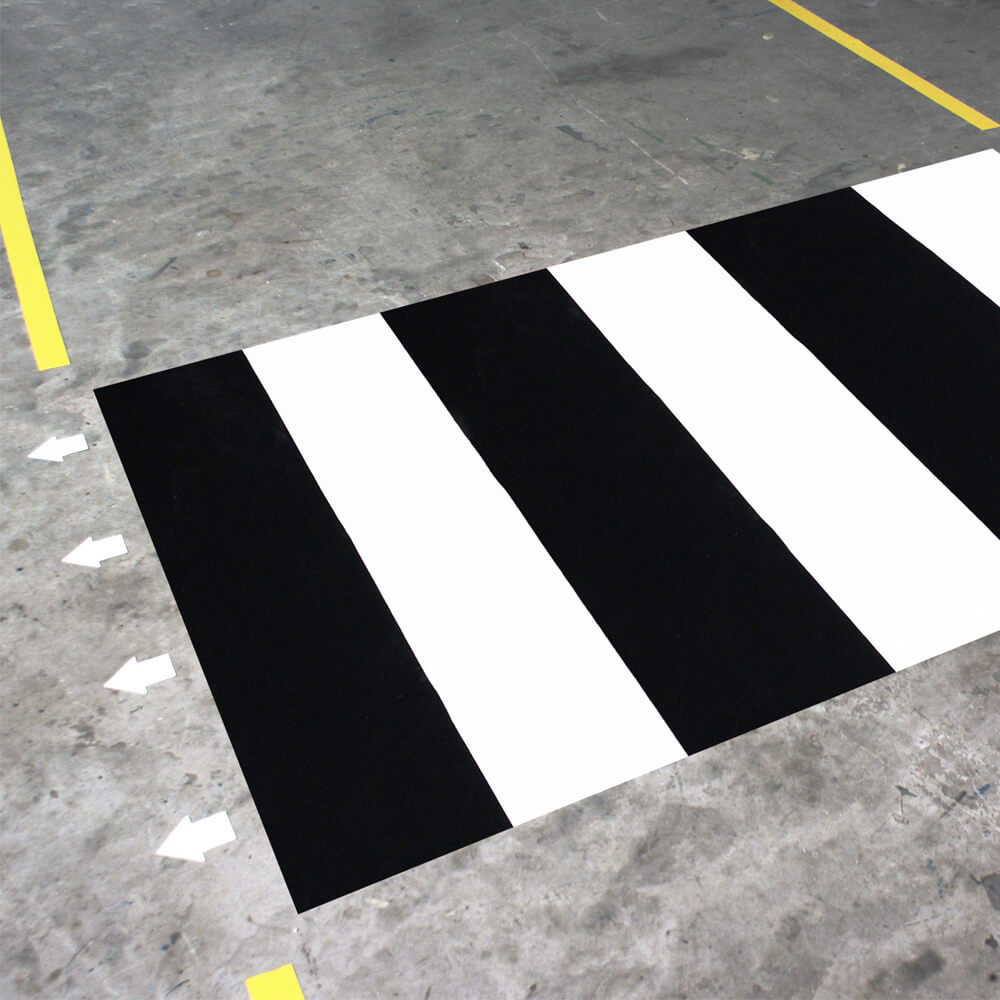

ZEBRA CROSSING

300mm x 1m black/white sections
Call for Info

Light Reflectance Values

Product code	Color	Av. LRV	Range
H6903N	Black	3.57	1.86
H6903R	Red	16.47	1.18
H6903O	Orange	26.65	2.38
H6903Y	Yellow	43.34	1.33
H6903F	Fluorescent Yellow	58.13	2.29
H6903V	Green	26.83	1.96
H6903B	Blue	18.57	1.53
H6903J	Dark Blue	6.93	0.5
H6903W	White	61.76	4.1
H6903D	Black / Yellow Hazard	4.4 / 48.9	0 / 0
H6903A	Red / White Hazard	21.13 / 66.4	1.4 / 0
H6903H	Green / White Hazard	14.20 / 54.41	2.42 / 3.52
H6903E	Black / White Hazard	3.82 / 55.46	1.37 / 2.17
H6903P	Black / Orange Hazard	4.83 / 23.1	1.1 / 2.2

Regulations and Certifications

Below is a table denoting what regulations standard PermaRoute® meets and what certs, if any, are available.

PermaRoute® ISO11925 – EN13501 Approval

Download

PermaRoute®

Contact Us

What preparation is required?

What advantage does it hold over paint and resin marking systems?

Is it durable?

I have a large site, is there a fast way of applying it?

We want to be able to display corporate colours throughout our warehouse, as you are a manufacturer is this something you can create?

PermaRoute® 2-Year Warranty

Why Choose PermaRoute®?

How to Apply PermaRoute® Letters

How to Apply PermaRoute® Shapes

How To Apply PermaRoute® L Shape Arrows

H6903N

H6903R

H6903O

H6903Y

H6903F

H6903V

H6903B

H6903J

H6903W

H6903D

H6903A

H6903H

H6903E

H6903P

SHAPES (CLICK IMAGES TO VIEW DIMENSIONS)

L

T

X

DOT

DOT

DOT

WALKING FIGURE

FORKLIFT

ARROW (LEFT OR RIGHT)

ARROW

SMALL ARROW

LARGE ARROW

EXTRA LARGE ARROW

SHORT ARROW

LINE BLOCK

L-SHAPE

T-SHAPE

X-SHAPE

FEET (CLICK IMAGES TO VIEW DIMENSIONS)

FEET

FEET

FEET

SHOE

BOOT

JOINS (CLICK IMAGES TO VIEW DIMENSIONS)

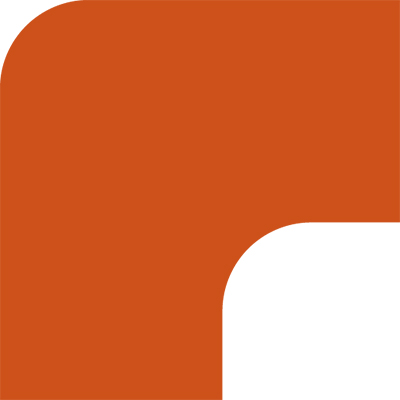

90° CORNER

90° CORNER

90° CORNER

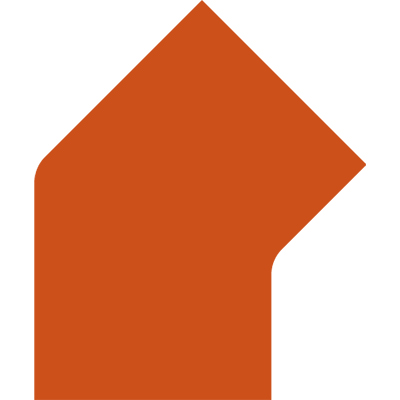

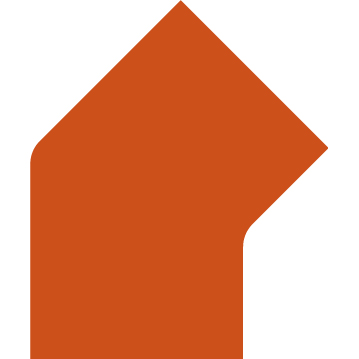

45° CORNER

45° CORNER

45° CORNER

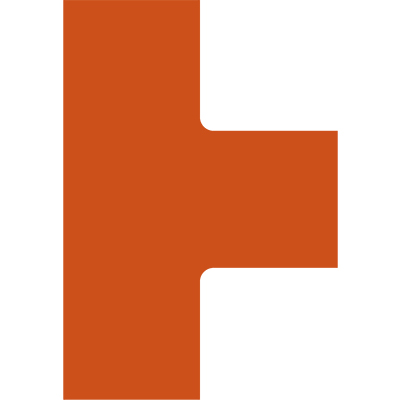

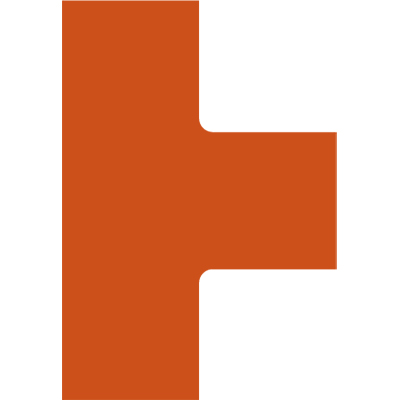

T-JUNCTION

T-JUNCTION

T-JUNCTION

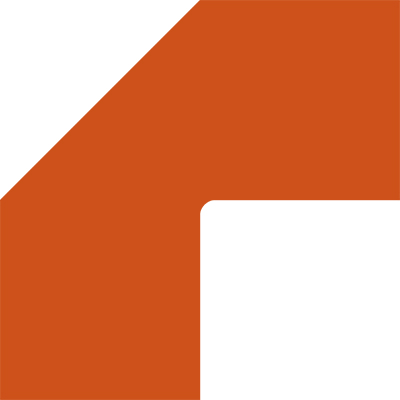

BRIDGE

BRIDGE

BRIDGE

END CAP

END CAP

END CAP

NUMBERS (CLICK IMAGES TO VIEW DIMENSIONS)

ZERO

1

2

3

4

5

6

7

8

9

LETTERS (CLICK IMAGES TO VIEW DIMENSIONS)

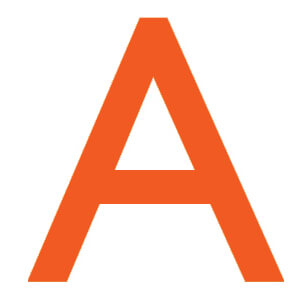

A
