PermaStripe® Smooth
Product code: PERM_S
- Homogenous
- Chamfered edge
- Easy to apply
- 0.05″ thick
- Widths from 2″ to 4″
- Free samples (takes you to permastripe.us)
- 3 Year Guarantee
- Overview
- Colors
- Designs

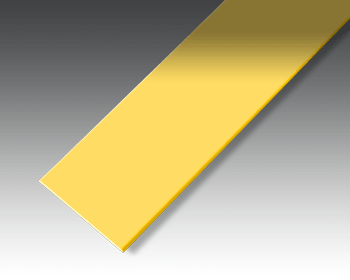

PermaStripe® Smooth carries all the benefits of our flagship PermaStripe® range, except for one feature. The textured surface is replaced with a completely smooth surface, making for easier cleaning and better aesthetic properties.
Particularly suited to areas and environments with strict hygiene regulations, the smooth surface will prevent harboring of bacteria, while the material itself will allow for an organized, safe workplace. Areas that focus on aesthetics will also receive the same benefit of having an organized working environment, with sleek lines that will complement the rest of the decor.
Benefits
Unlike a line marking paint or a line marking resin no fumes are created and there is no curing time ensuring that PermaStripe® Smooth is perfect for use in laboratories, pharmaceutical production sites, food preparation areas etc. As PermaStripe® Smooth is solid it does not need to dry, it can be walked on immediately after application. If a company wants to ensure that there is no production downtime then PermaStripe® Smooth is the material of choice, all production can continue whilst the aisle marking is applied and can be used immediately afterwards.
To request samples, please complete the PermaStripe® Smooth sample request form. (takes you to permastripe®.us)
Sizes & Colors

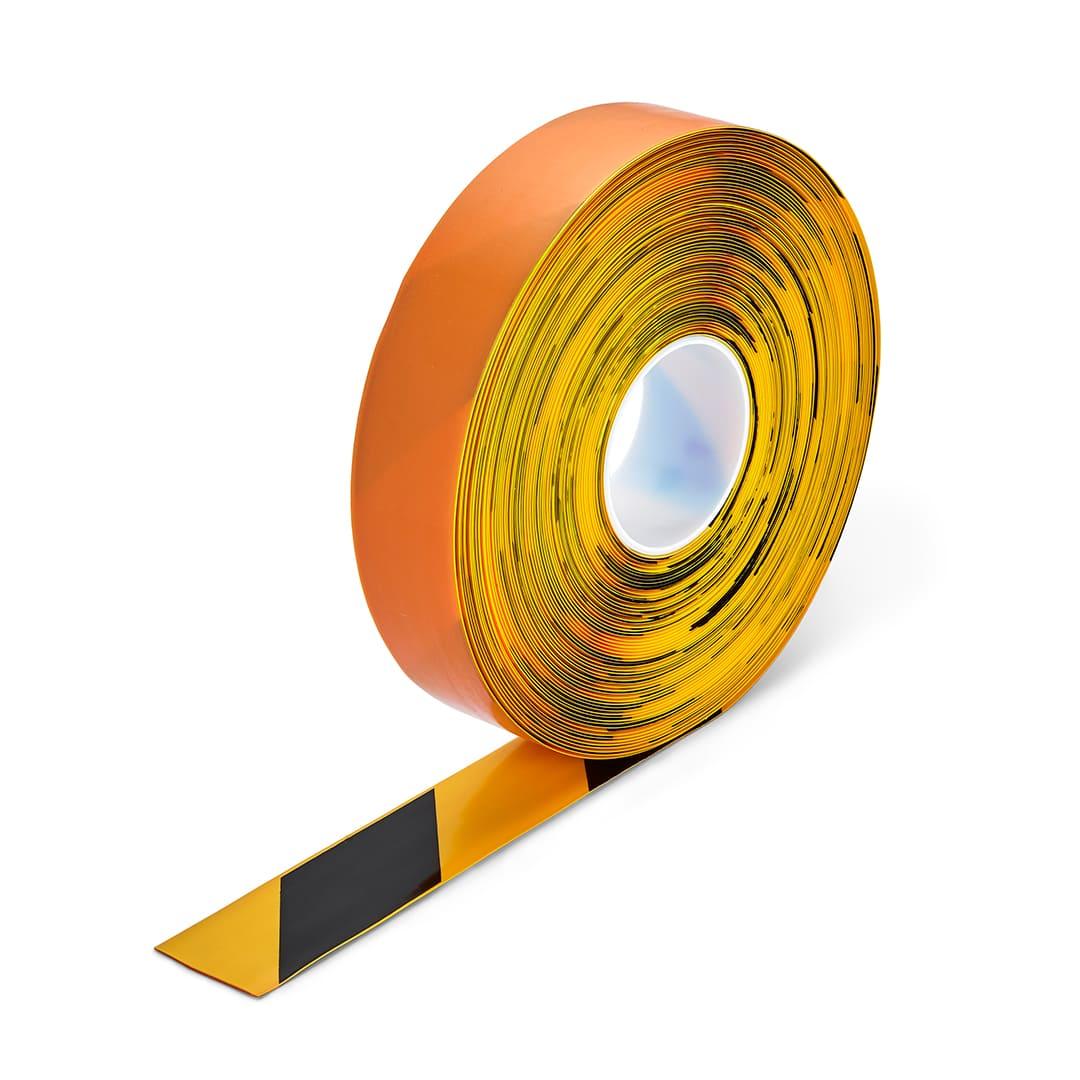

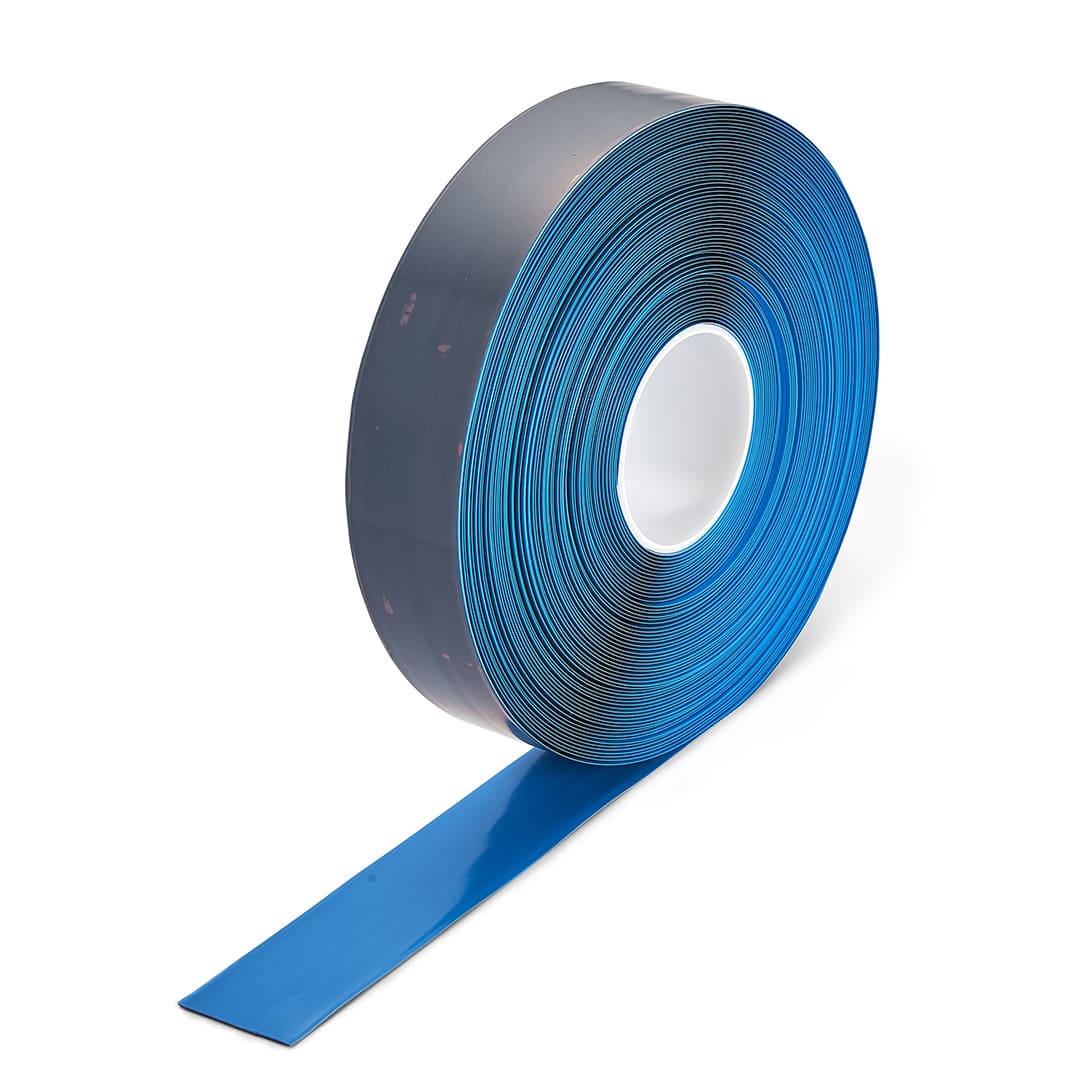

Our smooth marking tape is produced in 13 industry required colors; black, glow in the dark, yellow, yellow/black, green, red, white, red/white, blue, black/white, orange and fluorescent yellow. Three roll sizes are available 2”x98’, 3”x98’ and 4”x98’.
All numbers and letters are produced in either 3.75” or 7” high. We produce shapes to create the complete efficient lean production marking system; the shapes include feet to show safe walking areas, 90° or 45° angles to create the perfect corner, arrows to highlight zones etc.
Material
The construction is a solid homogenous piece of flexible plastic 0.05” thick. Unlike normal floor marking tape the color is not a print, the color is an integral part of the product, and it cannot be removed by solvents or even scraped away, even if someone scrapes it the color remains. PermaStripe Smooth is so incredibly thick the edge has to be chamfered to prevent it from becoming a trip hazard. Each roll has is produced individually, not slit, we apply the adhesive using a special laminator, the adhesive is coated completely edge to edge, if an adhesive material is going to fail then it will fail on the edges, no one manages to lift up the middle without edge failure first. PermaStripe uniquely has an edge to edge adhesive.
Even though PermaStripe® Smooth is so tough it can even be removed, its extreme strength ensures that it will not snap or fracture, resulting in the unique ability to change the color of individual areas, a green recycling area can be changed to become a red reject site, all with ease, imagine trying to do that with a line marking paint or a line marking resin!
PermaStripe® Smooth marking tape conforms to OSHA regulations and standards, OSHA stipulates that a business must follow this set of rules:
- All places of employment shall be kept clean and in an orderly fashion, all passageways should be kept clear from obstruction
- Where mechanical handling equipment such as forklifts are in use, sufficient safe clearances shall be made for aisles, loading bays, doorways and turning zones and ways of passage.
- Permanent aisles and passageways for machinery and personnel shall be marked as appropriate.
PermaStripe® Smooth is the solution, this heavy-duty floor marking is a durable and hard-wearing tape, which also follows and helps to meet all of the requirements for this section of OSHA 1910.22 (Walking-Working Surfaces). If OSHA regulations are not followed, a citation will be issued showing non-conformance with their regulations, these can be followed up with a large fine, going into the hundreds of thousands of dollars, this can affect a companies reputation, and cripple them financially. Heskins realizes that reputation is a key feature of the business. PermaStripe Smooth can solve these problems, what else would you expect from the worlds toughest line marking material?
PermaStripe
Floor marking tape does not come any tougher than PermaStripe and PermaStripe Smooth. PermaStripe is the world’s toughest floor marking tape, it is unique, and it has a construction that cannot be compared to anything else. PermaStripe is the material designed to meet modern 5S requirements. PermaStripe has an embossed surface to ensure anti-slip protection.
PermaStripe Applicator
The PermaStripe applicator is the ultimate way to rapidly apply perfect lines; the custom-designed applicator will run at whatever speed you chose to walk at. The PermaStripe is loaded on the back, the guide rollers then allow for neat application, the backing liner is removed automatically by the applicator machine and neatly stored. We can either rent or sell the line marking tape applicator (rental varies from state-to-state, please enquire).
PermaStripe Smooth 3 Year Guarantee
The Heskins guarantee for PermaStripe Smooth is conditionally guaranteed for 3 years from product purchase. Warranty claims are only limited to the replacement of PermaStripe Smooth . The warranty does not cover items being dragged, pushed or scraped across such as pallets or transit skids.
If you would like to request samples, please complete the PermaStripe Smooth sample request form. (takes you to permastripe.us)
To enquire further, or place an order, you can contact our sales team via phone or live chat. Alternatively, complete the Make an Enquiry form above, and we will get back to you as soon as possible.

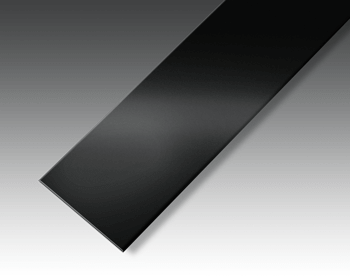

PERM_NS
Pantone / RAL
Black 6 U / 9004
Average LRV
3.36
PERM_RS
Pantone / RAL
199 U / 3018
Average LRV
19.93
PERM_OS
Pantone / RAL
021 U / 2008
Average LRV
36.23
PERM_YS
Pantone / RAL
108 U / 1018
Average LRV
64.63

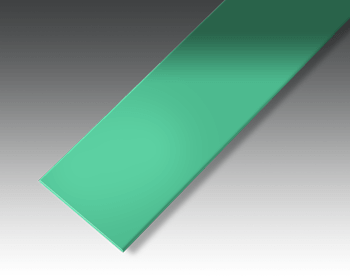

PERM_VS
Pantone / RAL
Green U / 6018
Average LRV
30.08
PERM_BS
Pantone / RAL
281 U / 5012
Average LRV
20.98
PERM_PS
Pantone / RAL
268 C / 4007
Average LRV
7.27

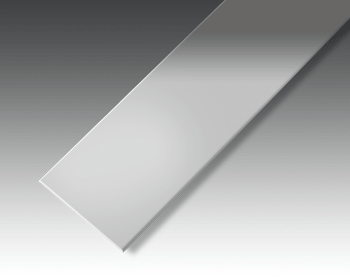

PERM_WS
Pantone / RAL
7541 U / 9003
Average LRV
88.5

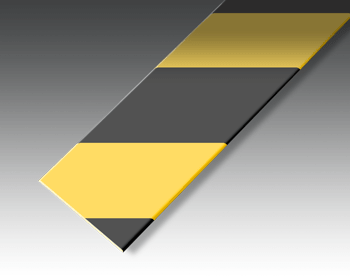

PERM_ZS
Pantone / RAL
Black: Black 6 / 9004
Yellow: 1235 U / 1021
Average LRV
Black: 2.97
Yellow: 61.82

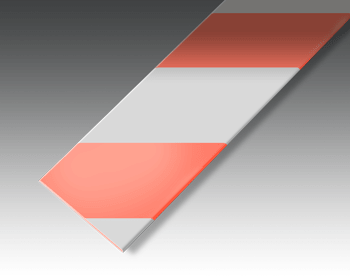

PERM_AS
Pantone / RAL

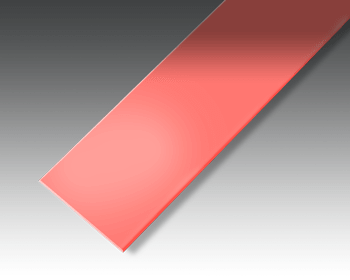

Red: 485 U / 3001
White: 7541 / 9003
Average LRV
Red: 25.19
White: 77.42
SHAPES (CLICK IMAGES TO VIEW DIMENSIONS)
L
ZN0027 – 7″ x 7″
T
ZN0028 – 11″ x 7″
X
ZN0029 – 11″ x 11″
DOT 2in Ø
ZN0035 – 2″
DOT 3.5in Ø
ZN0034 – 3.5″
Short Arrow
ZN0050 – 3.5″ X 3″
FEET (CLICK IMAGES TO VIEW DIMENSIONS)
Feet
ZN0201 – 4.15″ x 11″
Feet
ZN0010 – 2.5″ x 4″
Feet
ZN0011 – 4.7″ x 8.2″
Shoes
ZN0013 – 9.4″ x 3.2″
Boots
ZN0016 – 4.7″ x 11.8″
JOINS (CLICK IMAGES TO VIEW DIMENSIONS)
90° CORNER
ZN0063 – 3.5″ x 3.5″
90° CORNER
ZN0054 – 5″ x 5″
90° CORNER
ZN0202 – 7″ x 7″
45° CORNER
ZN0214 – 3.3″ x 2.7″
45° CORNER
ZN0215 – 5″ x 4.5″
45° CORNER
ZN0216 – 6.7″ x 5.5″
T-JUNCTION
ZN0055 – 5.75″ x 3.93″
T-JUNCTION
ZN0217 – 8.6″ x 5.9″
T-JUNCTION
ZN0339 – 11.4″ x 7.87″
BRIDGE
ZN0061 – 5.5″ x 2.75″
BRIDGE
ZN0062 – 8.2″ x 4.13″
BRIDGE
ZN0340 – 11″ x 5.5″
END CAP
ZN0157 – 2.75″ x 1.37″
END CAP
ZN0341 – 4.13″ x 2″
END CAP
ZN0342 – 5.5″ x 2.75″
NUMBERS (CLICK IMAGES TO VIEW DIMENSIONS)
ZERO
ZN0083– 3.5″ ZN0093– 7″
1
ZN0084– 3.5″ ZN0094– 7″
2
ZN0085– 3.5″ ZN0095– 7″
3
ZN0083– 3.5″ ZN0096– 7″
4
ZN0087– 3.5″ ZN0097– 7″
5
ZN0088– 3.5″ ZN0098– 7″
6
ZN0089– 3.5″ ZN0099– 7″
7
ZN0090– 3.5″ ZN0100– 7″
8
ZN0091– 3.5″ ZN0101– 7″
9
ZN0092– 3.5″ ZN0102– 7″
LETTERS (CLICK IMAGES TO VIEW DIMENSIONS)
A
ZN0229– 3.5″ ZN0255– 7″
B
ZN0230– 3.5″ ZN0230– 7″
C
ZN0231– 3.5″ ZN0257– 7″
D
ZN0232– 3.5″ ZN0258– 7″
E
ZN0233– 3.5″ ZN0259– 7″

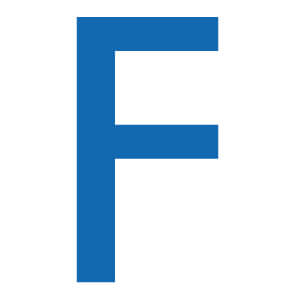

F
ZN0234– 3.5″ ZN0260– 7″

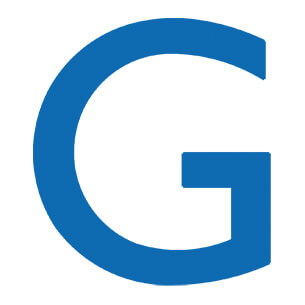

G
ZN0235– 3.5″ ZN0261 – 7″

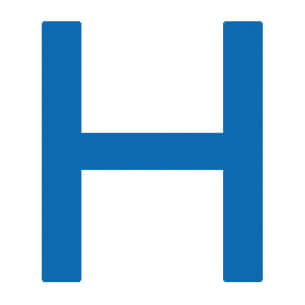

H
ZN0236– 3.5″ ZN0262– 7″

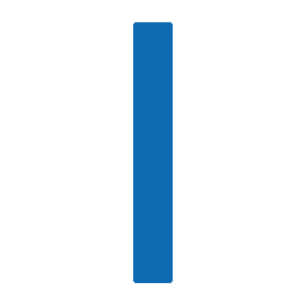

I
ZN0237– 3.5″ ZN0263– 7″

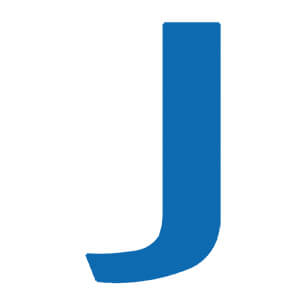

J
ZN0238– 3.5″ ZN0264– 7″

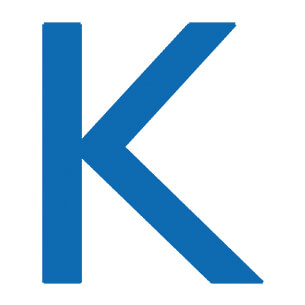

K
ZN0239– 3.5″ ZN0265– 7″

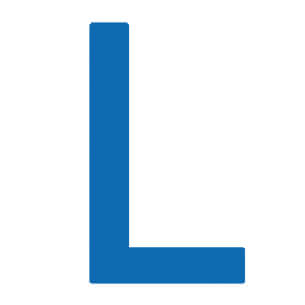

L
ZN0240– 3.5″ ZN0266– 7″

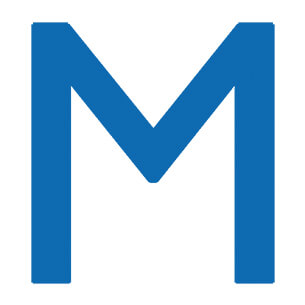

M
ZN0241– 3.5″ ZN0267– 7″

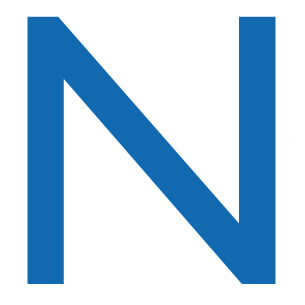

N
ZN0242– 3.5″ ZN0268– 7″

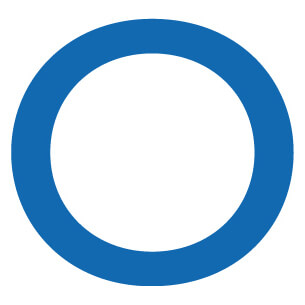

O
ZN0243– 3.5″ ZN0269– 7″

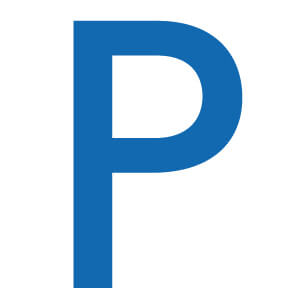

P
ZN0244– 3.5″ ZN0270– 7″

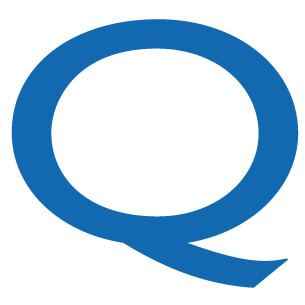

Q
ZN0245 – 3.5″ ZN0271– 7″

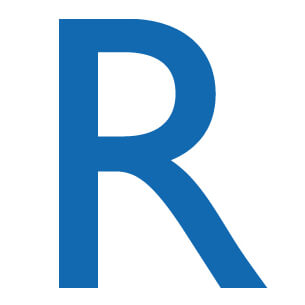

R
ZN0246– 3.5″ ZN0272– 7″
S
ZN0247– 3.5″ ZN0273– 7″
T
ZN0248– 3.5″ ZN0274– 7″

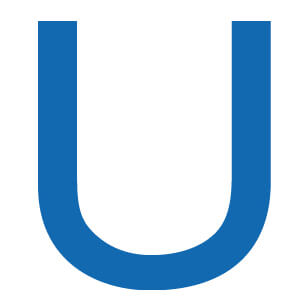

U
ZN0249– 3.5″ ZN0275– 7″

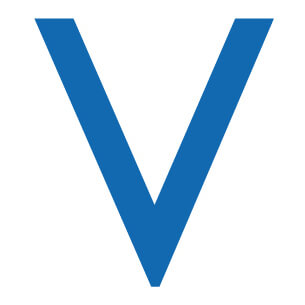

V
ZN0250– 3.5″ ZN0276– 7″

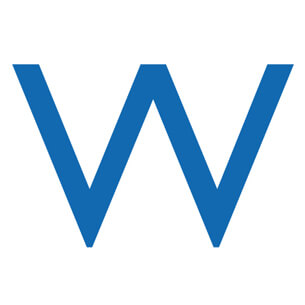

W
ZN0251– 3.5″ ZN0277– 7″

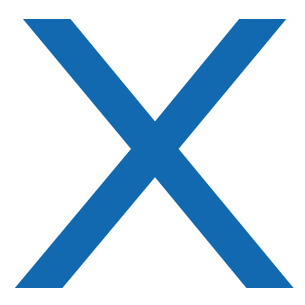

X
ZN0252– 3.5″ ZN0278– 7″
Y
ZN0253– 3.5″ ZN0279– 7″

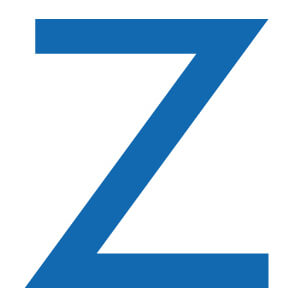

Z
ZN0254– 3.5″ ZN0280– 7″
Light Reflectance Values
| Product code | Color | Av. LRV | Range |
|---|---|---|---|
| PERM_NS | Black | 3.36 | 0.44 |
| PERM_RS | Red | 19.93 | 0.43 |
| PERM_OS | Orange | 36.23 | 0.64 |
| PERM_YS | Yellow | 64.63 | 2.87 |
| PERM_VS | Green | 30.08 | 0.98 |
| PERM_BS | Blue | 20.98 | 1.1 |
| PERM_WS | White | 88.5 | 0.09 |
| PERM_ZS | Black / Yellow Hazard | 2.97 / 61.82 | 0.5 / 0.49 |
| PERM_AS | Red / White Hazard | 25.19 / 77.42 | 1.08 / 1.22 |
| PERM_PS | Purple | 7.27 | 1.37 |
Regulations and Certifications
A document that depicts our PermaStripe Colors and their use within a warehouse to meet 5S Optimization requirements
| 5S Optimization Color Chart | Download |
