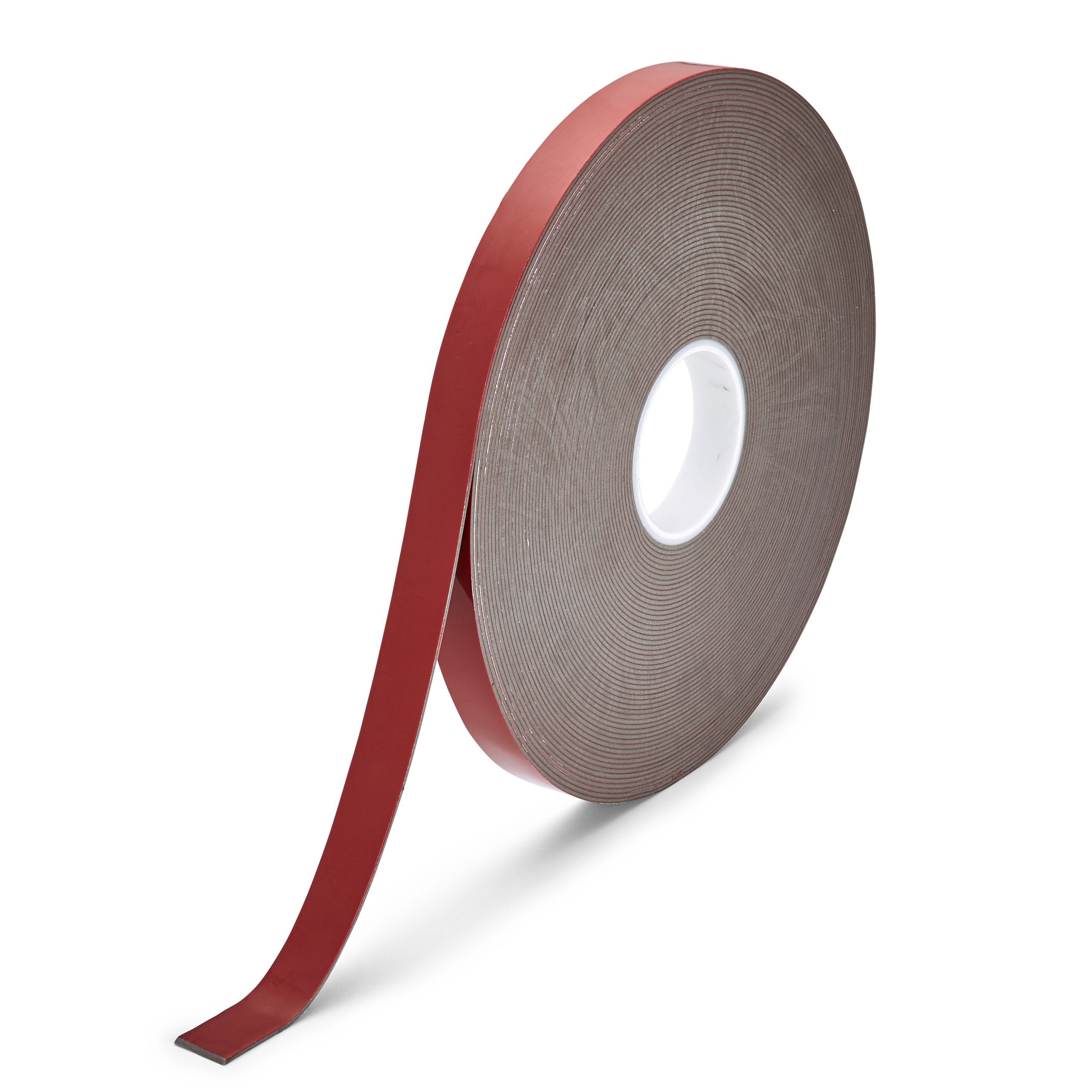

UHB Heavy Duty Bonding Tape

Product code: UHB

  • Quickly bond various materials together
  • A suitable alternative to rivets
  • Waterproof
  • Dampens vibrations
  • Available in different widths
  • Overview
  • Colors

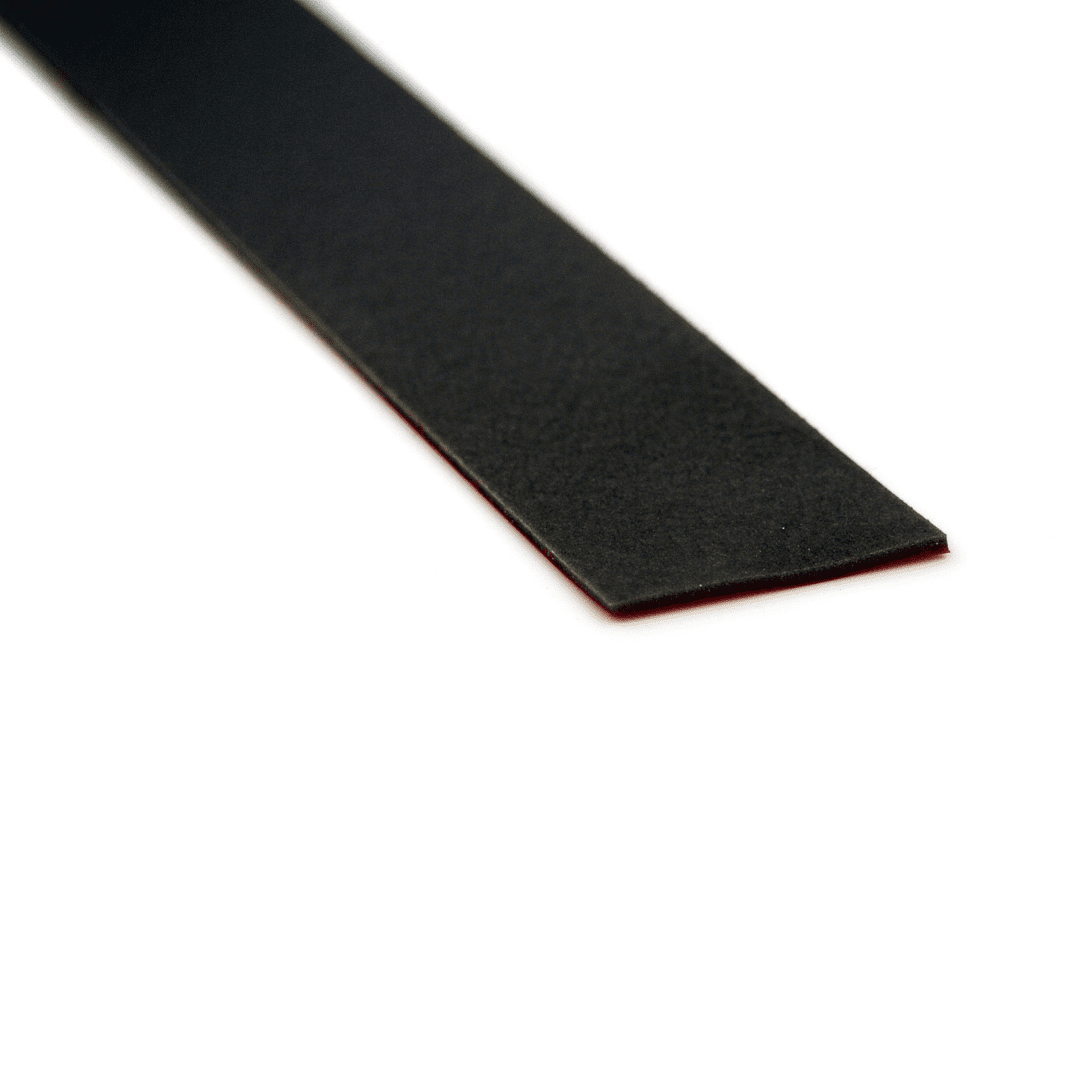

UHB heavy-duty bonding tape is a double-sided, strong bonding tape used to bond or mount materials together. Constructed from a durable acrylic foam, with a pressure-sensitive adhesive, both of which are solvent-free, applied to both sides. This creates a strong bond before reaching full adhesion in approximately 3 days.

Benefits

There is conclusive evidence that UHB heavy-duty bonding tape rivals the tried and tested method of riveting and in fact creates a bond that carries the following benefits.

  • Waterproof
  • Draught proof
  • Noise reduction
  • Faster application
  • Dampens vibration
  • Improves aesthetics

Not just this, but it provides a speedier application than mechanical fasteners, replacing rivets, spot welds, screws and bolts. The durable acrylic foam the strong bonding tape is made from is viscoelastic in nature, giving the foam stress relaxing and energy-absorbing properties, preventing these forces causing failures over time, which happens with mechanical fixings, requiring maintenance, and increased costs. Strong bonding tapes durability is further increased by it’s resistance to solvents, moisture and UV, reducing wear, unlike mechanical components which can be easily corroded.

UHB Bonding Tape Sizes

UHB Tape is available in the following sizes:

  • UHB_T1 – 0.05in
  • UHB_T2 – 0.06in
  • UHB_T3 – 0.08in

Widths available are from 0.5in up to 2.6ft and lengths up to 108ft.

Custom

We also offer custom options. Dependent on order quantity, we can produce UHB tape in sizes and colors specific to your requirements. Please contact us to discuss this.

UHB_T1

Pantone / LRV
199 U / 3020
Average LRV
18.94

Red

UHB_T2

Pantone / LRV
199 U / 3020
Average LRV
18.79

Red

UHB_T3

Pantone / LRV
199 U / 3020
Average LRV
18.8

Red

Light Reflectance Values

Product code Color Av. LRV Range
UHB_T1 Red 18.94 1.69
UHB_T2 Red 18.79 2.24
UHB_T3 Red 18.8 1.06
